Jomar 800-108ADDG Lead Free Add-A-Valve Power 2 in Replacement MPN

Product Description

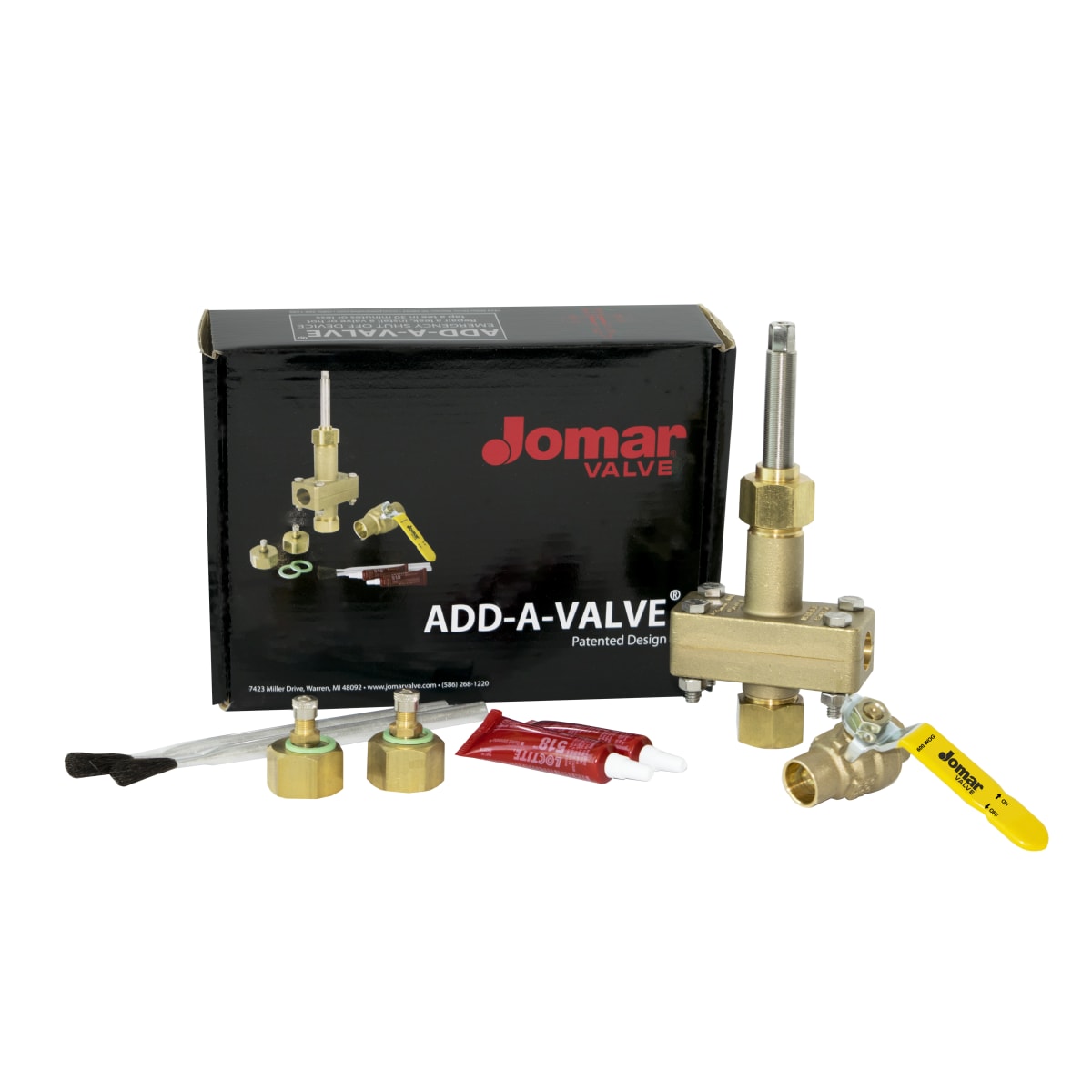

The Jomar Lead Free Add-A-Valve, model 800-108ADDG is a crucial emergency shut-off device utilized in various piping applications. This valve is built to be reliable with a nominal size of two inches, pressure rated to two hundred fifty psi. It is designed to operate effectively at temperatures up to two hundred twenty degrees Fahrenheit. The device measures seven point two inches from inlet to outlet and displays a height of sixteen point sixty-one inches.

• Emergency shut-off capability
• Bottom cleanout cap for easy line tapping
• IAPMO Certified and Lead Free Compliant

Product Highlights

This valve contributes to operational efficiency by eliminating unnecessary facility shutdowns due to emergencies.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527300843

Technical Specifications

• Body Material: Forged Brass
• Dimensions: 16.61 inches H
• Inlet to Outlet Length: 7.2 inches
• Nominal Size: 2 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Softgoods Material: FKM Gasket, O-Ring
• Temperature Rating: 220 degrees Fahrenheit
• Top to Inlet Center: 12.17 inches
• Trim Material: Hardened Steel
