Product Description

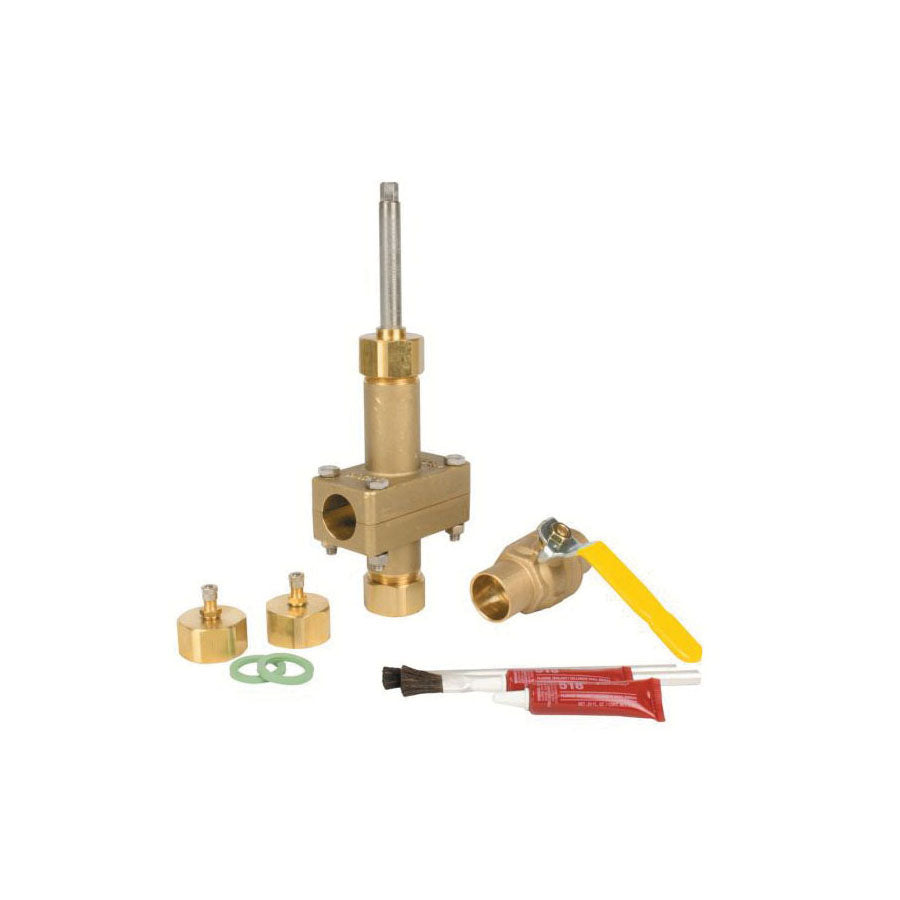

The Jomar 800-107ADDG Lead Free Add-A-Valve is a reliable emergency shut-off device designed for piping systems. This valve has a nominal size of one and one-half inches and is constructed of a forged brass body with hardened steel trim. It operates at a pressure rating of 250 psi and has a temperature rating of 220 degrees Fahrenheit.
- Full port design minimizes flow restrictions.
- Bottom cleanout cap allows for easy access for maintenance.
- Lead free compliant for safety in potable water systems.
Product Highlights
This valve is ideal for facilities seeking to maintain system integrity without causing unnecessary shutdowns.
Product Information
Standard Information
-
Manufacturer: Jomar
-
UPC: 662527300836
Technical Specifications
-
Body Material: Forged Brass
-
Pressure Rating: 250 psi
-
Temperature Rating: 220 degrees F
-
Nominal Size: 1-1/2 inches
-
Inlet to Outlet Length: 4.65 inches
-
Top to Inlet Center: 10.43 inches
-
Softgoods Material: FKM Gasket, O-Ring
-
Trim Material: Hardened Steel
