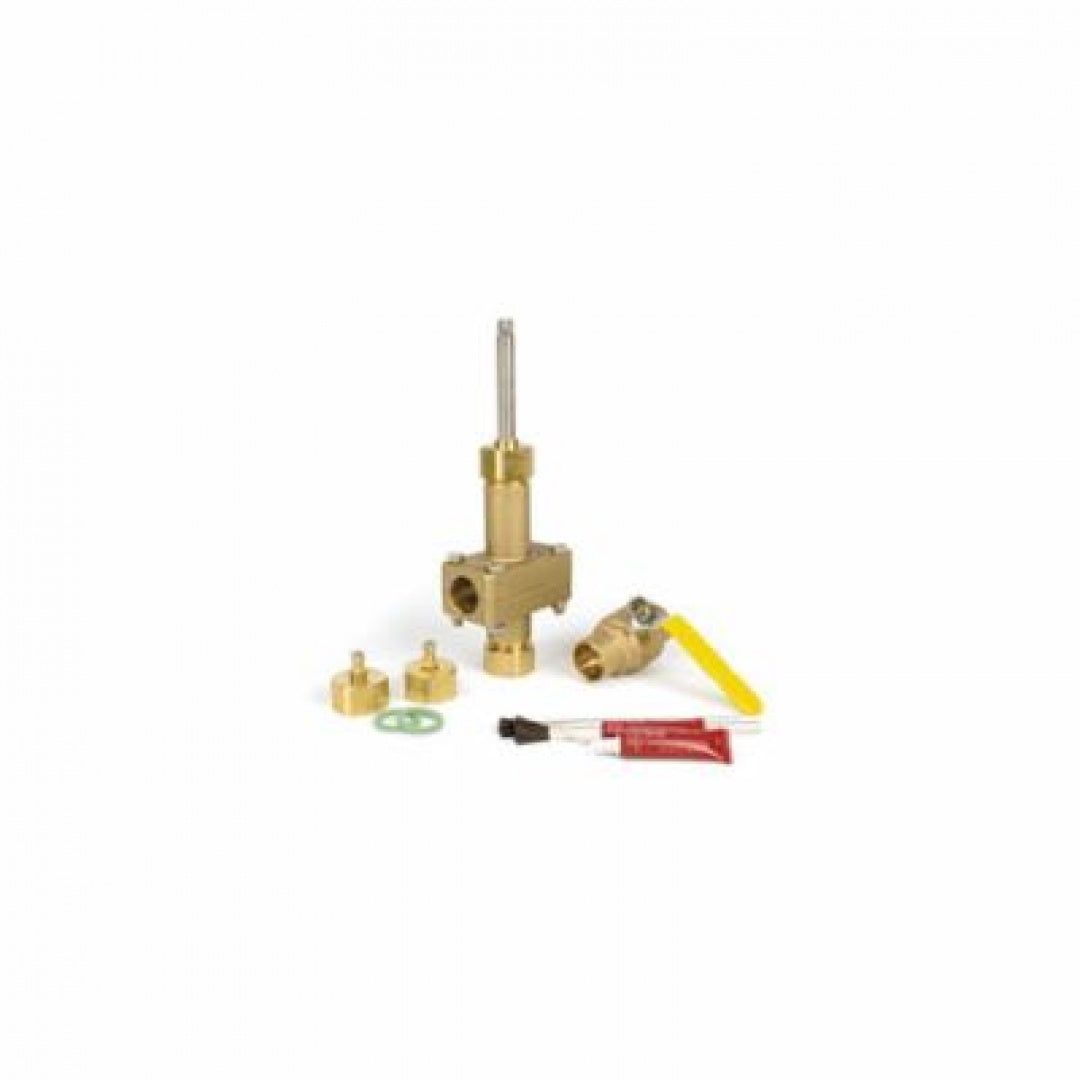

Jomar 800-107ADD Brass Add-A-Valve Emergency Shut Off Valve 1-1/2 in

Product Description

The Jomar 800-107ADD Brass Add-A-Valve is a reliable emergency shut off valve that fits a copper tube size of one and one-half inches. This valve operates under a maximum pressure of two hundred fifty psi, suitable for both water and glycol systems. Constructed from durable forged brass, it features an emergency shutdown device allowing for efficient operation without the need for building shut downs.

• Fit for copper tube size 1-1/2 inches
• Rugged brass construction
• 30-minute installation time

Product Highlights

This valve minimizes downtime in facilities and does not require pipe freezing, which saves time, labor, and costs.

Product Information

Standard Information

• Brand: Jomar Valve
• Product Type: Valve

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Forged Brass
• Dimensions: 13.86 inches height
• Inlet to Outlet Length: 4.65 inches
• Nominal Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 250 psi
• Softgoods Material: FKM Gasket, O-Ring
• Temperature Rating: 220 degrees Fahrenheit
• Top to Inlet Center: 10.43 inches
• Trim Material: Hardened Steel
• Manufacturer: Jomar
