Product Description

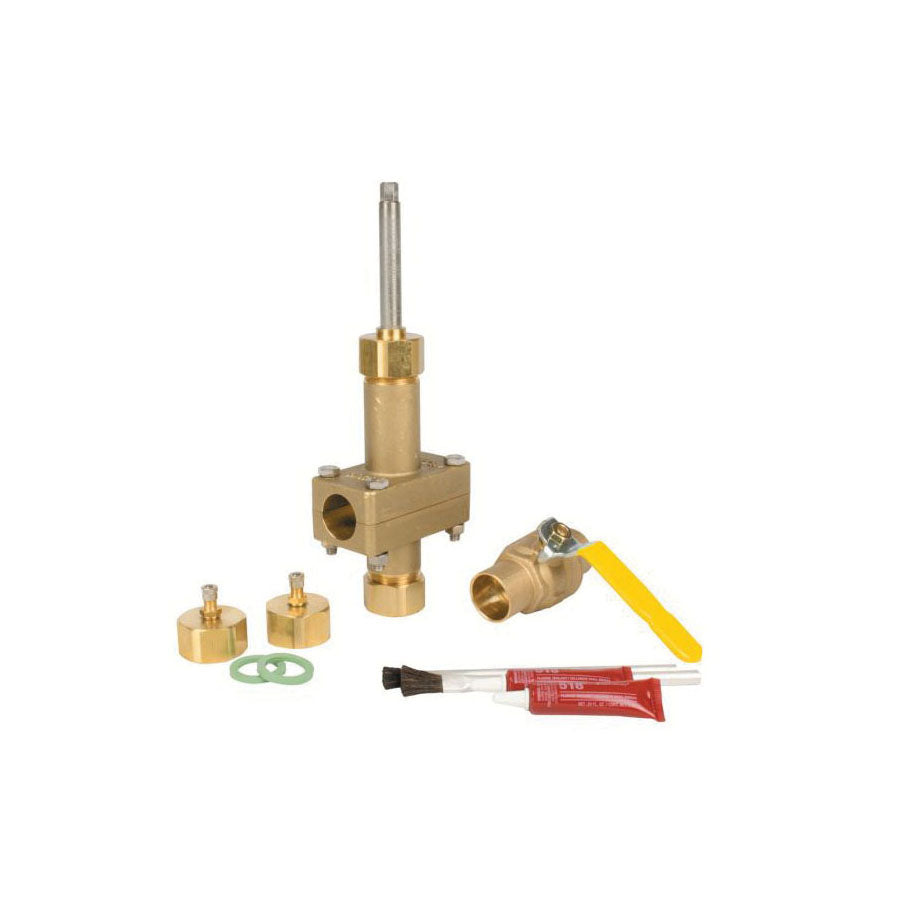

The Jomar 800-106ADDG Lead Free Add-A-Valve is designed as an emergency shut-off device suitable for 1-1/4 inch pipes. This valve operates under a pressure rating of up to 250 psi and can withstand temperatures up to 220 degrees Fahrenheit. The forged brass body ensures durability, while the hardened steel trim provides strong support. This valve features a full port design, allowing for unrestricted flow. The bottom cleanout cap serves as a line tap, which helps in maintenance without system shutdown.
- Emergency shut-off device for safe operation
- Suitable for a variety of piping applications
- Easy maintenance with cleanout cap
Product Highlights
This valve is compliant with IAPMO standards and is lead-free, ensuring safety in potable water applications. It is ideal for commercial plumbing systems and features NSF 372 certification.
Product Information
Standard Information
-
Manufacturer: JOMAR
-
UPC: 662527300829
Technical Specifications
-
Body Material: Forged Brass
-
Dimensions: 12.72 inches H
-
Inlet to Outlet Length: 4-1/4 inches
-
Nominal Size: 1-1/4 inches
-
Port Type: Full
-
Pressure Rating: 250 psi
-
Softgoods Material: FKM Gasket, O-Ring
-
Temperature Rating: 220 degrees Fahrenheit
-
Top to Inlet Center: 9.77 inches
-
Trim Material: Hardened Steel
