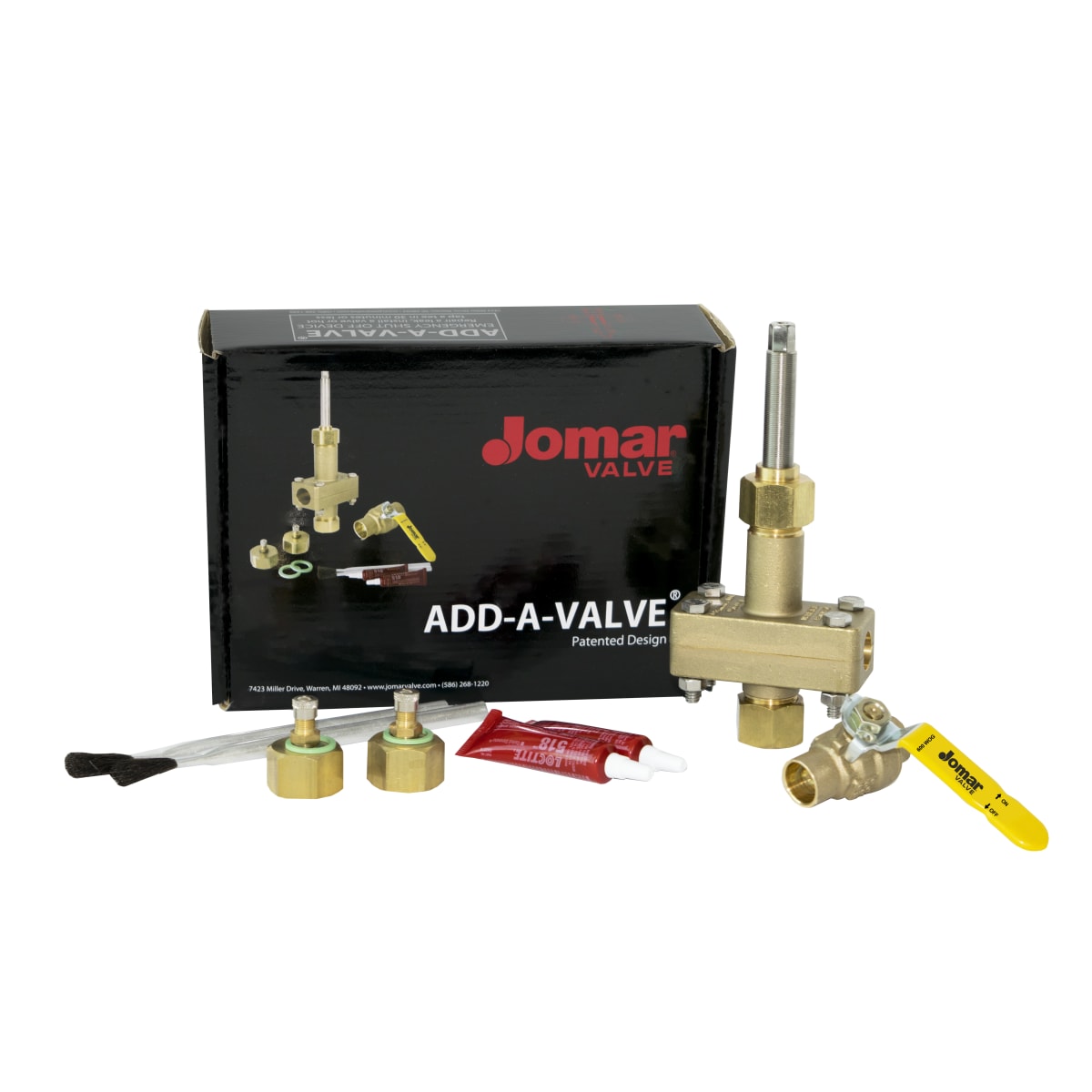

Jomar 800-105ADDG Lead Free Add-A-Valve Power One in

Product Description

The Jomar valve 800-105ADDG is a lead free Add-A-Valve designed to function as an emergency shut-off device. It features a nominal size of one inch and is rated for a pressure of 250 psi. With a temperature tolerance of 220 degrees Fahrenheit, this valve provides durability and efficiency in fluid control systems. The valve has a length of 3.66 inches from inlet to outlet and a height of 10.28 inches.

• Eliminates facility shutdowns
• Bottom cleanout cap serves as line tap
• IAPMO Certified, Lead Free Compliant

Product Highlights

This valve is engineered for quick maintenance and reliable operation, ensuring continuous functionality in plumbing systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527300799

Technical Specifications

• Body Material: Forged Brass
• Dimensions: 10.28 in H
• Inlet to Outlet Length: 3.66 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 250 psi
• Softgoods Material: FKM Gasket, O-Ring
• Temperature Rating: 220 deg F
• Top to Inlet Center: 7.48 in
• Trim Material: Hardened Steel
