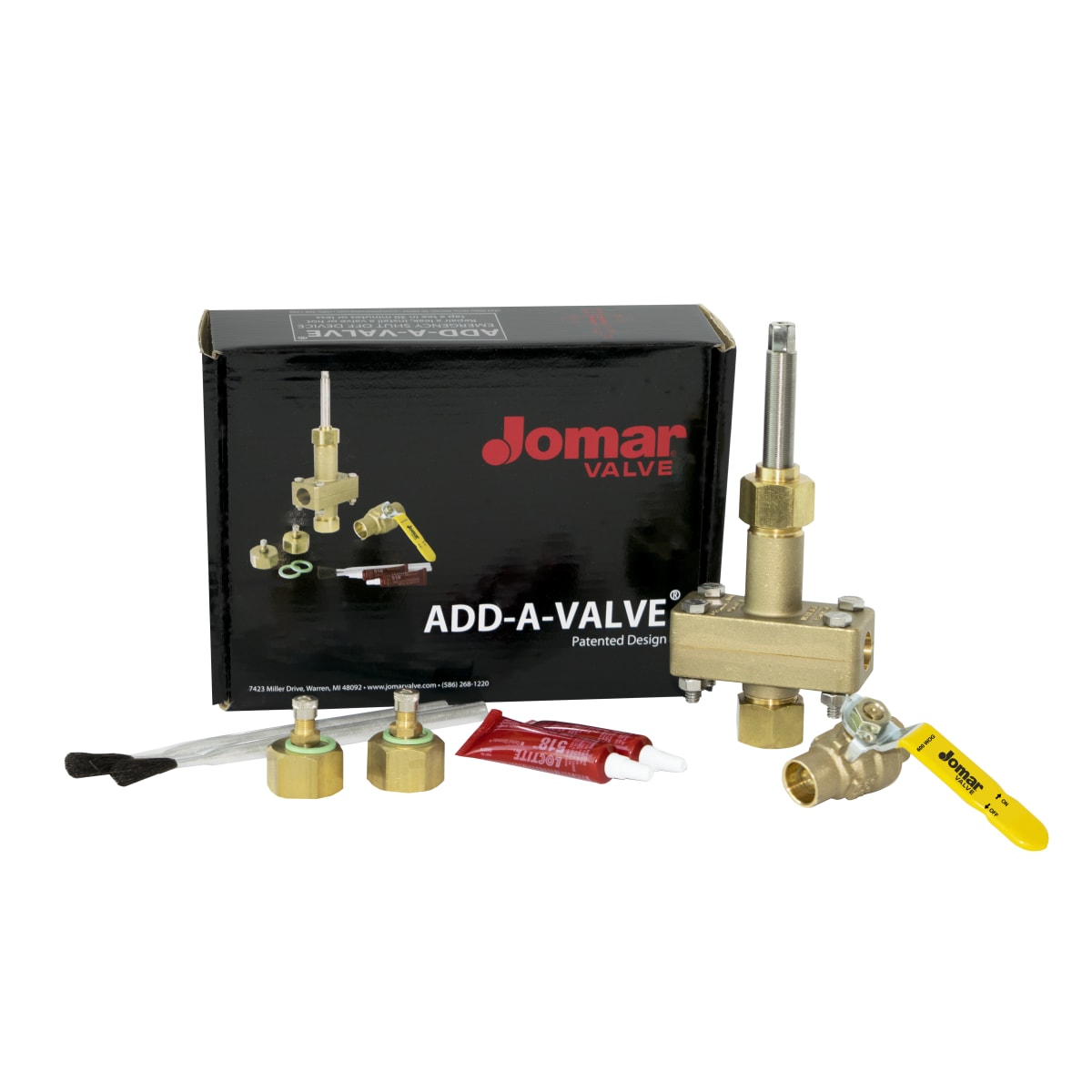

Jomar 800-105ADD Brass Add-A-Valve 1 in - 800-105ADD

Product Description

The Jomar Brass Add-A-Valve with MPN 800-105ADD is an emergency shutoff device designed for plumbing systems. This valve helps prevent the need for facility shutdowns during maintenance. It is capable of handling up to 250 psi pressure and can operate effectively at temperatures reaching 220 degrees Fahrenheit.

• 1-inch nominal size
• Forged brass body
• Lever handle actuator for easy operation

Product Highlights

This valve includes a cleanout cap that serves as a line tap. It is ideal for installations where quick access to shutoff points is necessary, streamlining maintenance and repairs.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 800-105ADD

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Forged Brass
• Dimensions: 10.28 inches Height
• Inlet to Outlet Length: 3.66 inches
• Nominal Size: 1 inch
• Port Type: Full
• Pressure Rating: 250 psi
• Softgoods Material: FKM Gasket, O-Ring
• Temperature Rating: 220 degrees Fahrenheit
• Top to Inlet Center: 7.48 inches
• Trim Material: Hardened Steel
