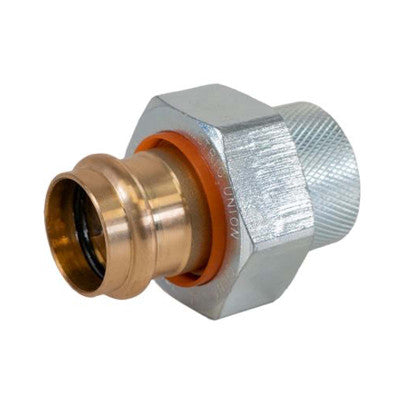

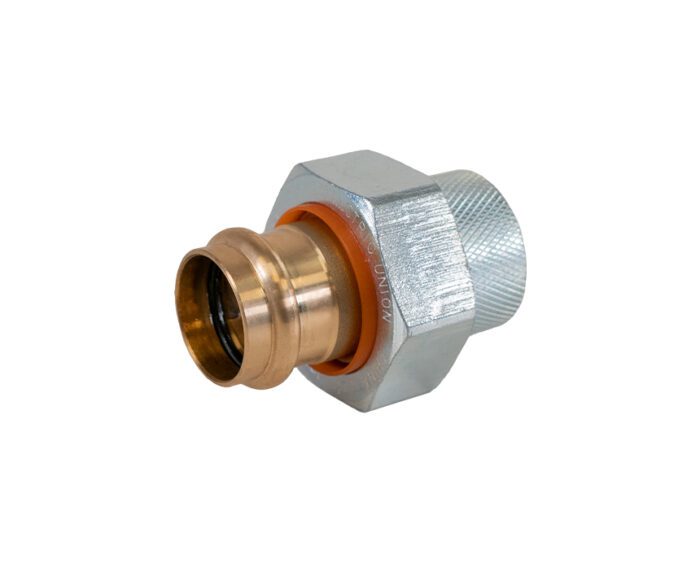

Jomar 701-704G Valve 3/4 Inch Dielectric Union

Product Description

The JOMAR 701-704G valve is a 3/4 inch dielectric union. It features a dezincification resistant brass alloy and prevents accelerated corrosion. The union has a lead-free brass press x galvanized FIP connection and a pressure rating of 250 PSI.

• Dezincification Resistant Brass Alloy.
• Prevents Accelerated Corrosion
• EPDM Gasket: -20 degree F to 180 degree F

Product Highlights

The JOMAR 701-704G dielectric union is designed to prevent corrosion in piping systems with dissimilar metals.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 701-704G

Technical Specifications

• Connection: Lead Free Brass Press x Galvanized Steel FIP
• Pressure Rating: 250 PSI
• Size: 3/4"
• Approvals: - Conforms to IAPMO PS117 - Conforms to ANSI B1.20.1 - IAPMO Certified - NSF 61-8 - NSF 372 - Uniform plumbing code (cUPC) - IAPMO/ANSI Z1157-2014 - NSF/ANSI 14-2014
• Item: Dielectric Union
• Body Material: Dezincification Resistant Lead-Free Brass
• Connection Type: Press x FIP
• Seat Material: BUNA
