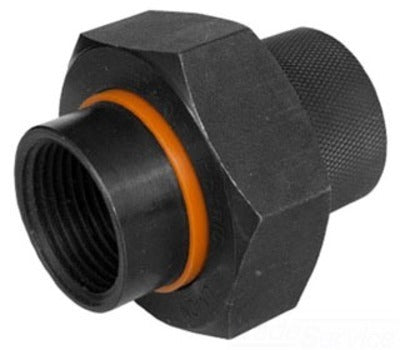

Jomar 701-403 Black Iron FIP x FIP Dielectric Union 250 PSI

Product Description

The Jomar 701-403 Black Iron FIP x FIP Dielectric Union is designed to provide a secure connection in piping systems. Made of durable steel, it features a black iron FNPT end style. The union has a nominal size of 1/2 inch and a pressure rating of 250 PSI. It is suitable for a wide range of temperatures, from -20 to 180 degrees Fahrenheit.

• Prevents accelerated corrosion
• Suitable for black pipe connections
• Standard Buna seats

Product Highlights

The Jomar Dielectric Union 701-403 is made for use with black pipes and helps to prevent accelerated corrosion. It features a 1.61-inch hex size and a length of 2.14 inches. The union meets ANSI B1.20.1/B16.39 standards.

Product Information

Standard Information

• Brand: Jomar
• Model Number: 701-403
• UPC: 662527297259

Technical Specifications

• End Style: Black Iron FNPT
• Finish: Black
• Hex Size: 1.61 inches
• Length: 2.14 inches
• Material: Steel
• Nominal Size: 1/2 inch
• Pressure Rating: 250 PSI
• Temperature Rating: -20 to 180 degrees Fahrenheit
• Specifications Met: ANSI B16.39, ANSI B1.20.1
