JOMAR 600-210 Full Port, 2 Piece, Flanged Connection, Class 150, Carbon Steel, Stainless

Product Description

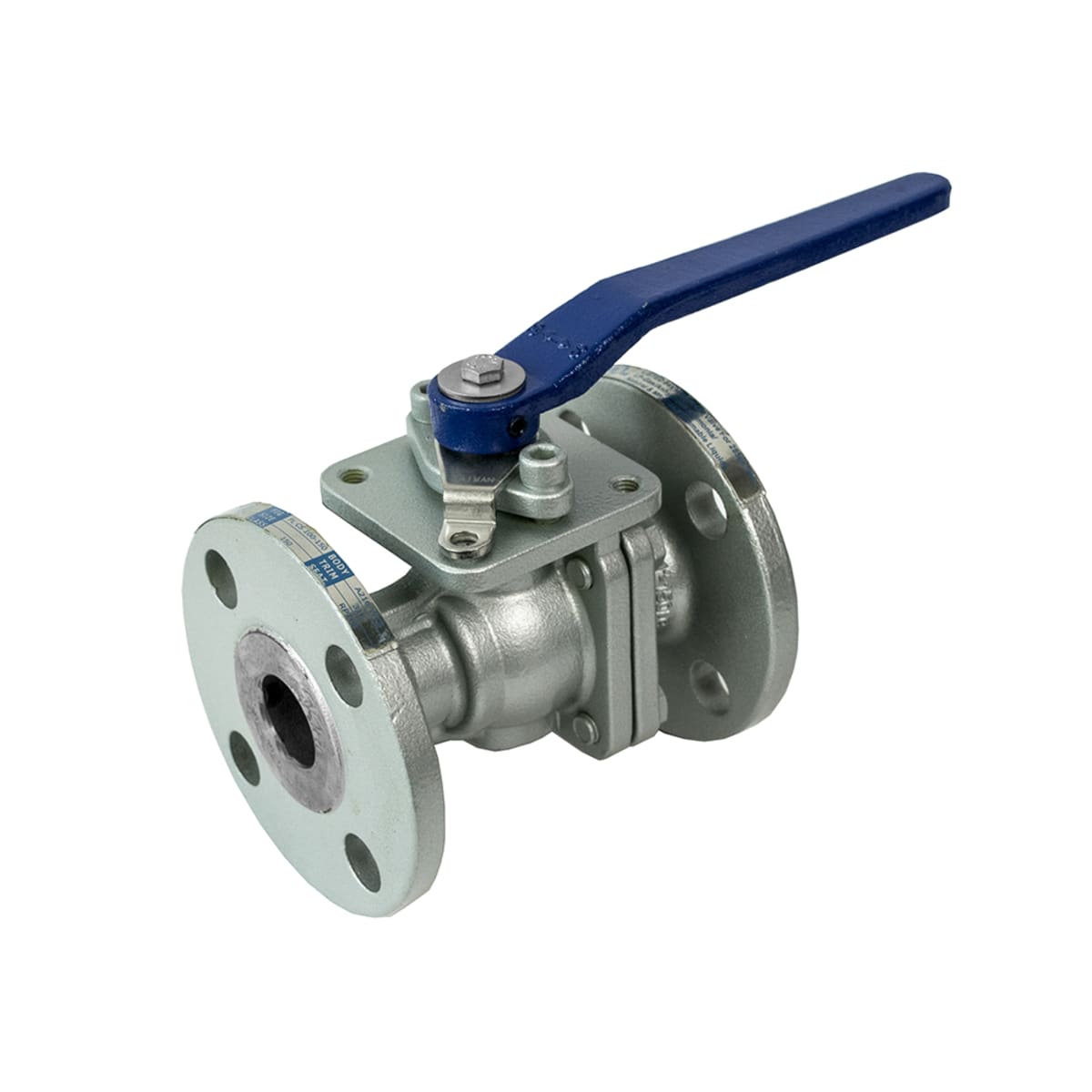

The JOMAR 600-210 is a 2-piece ball valve designed for reliable fluid control in piping systems. This valve is made from WCB Carbon Steel and features a stainless steel ball. The flanged connection allows for easy installation and maintenance in various applications.

• Flanged connection for secure attachment
• Constructed with stainless steel and carbon steel
• 300 psi WOG pressure rating

Product Highlights

This valve operates with a full port design, ensuring maximum flow capacity. Ideal for use in plumbing, HVAC, and general industrial applications.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 600-210

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: WCB Carbon Steel
• End Style: Flanged
• Inlet to Outlet Length: 7.99 inches
• Nominal Size: 3 inches
• Port Type: Full
• Pressure Class: 150 lb
• Pressure Rating: 300 psi WOG
• Softgoods Material: Graphite/PTFE
• Trim Material: 304 Stainless Steel Stem and RPTFE Seat
• Type: 2-Piece
