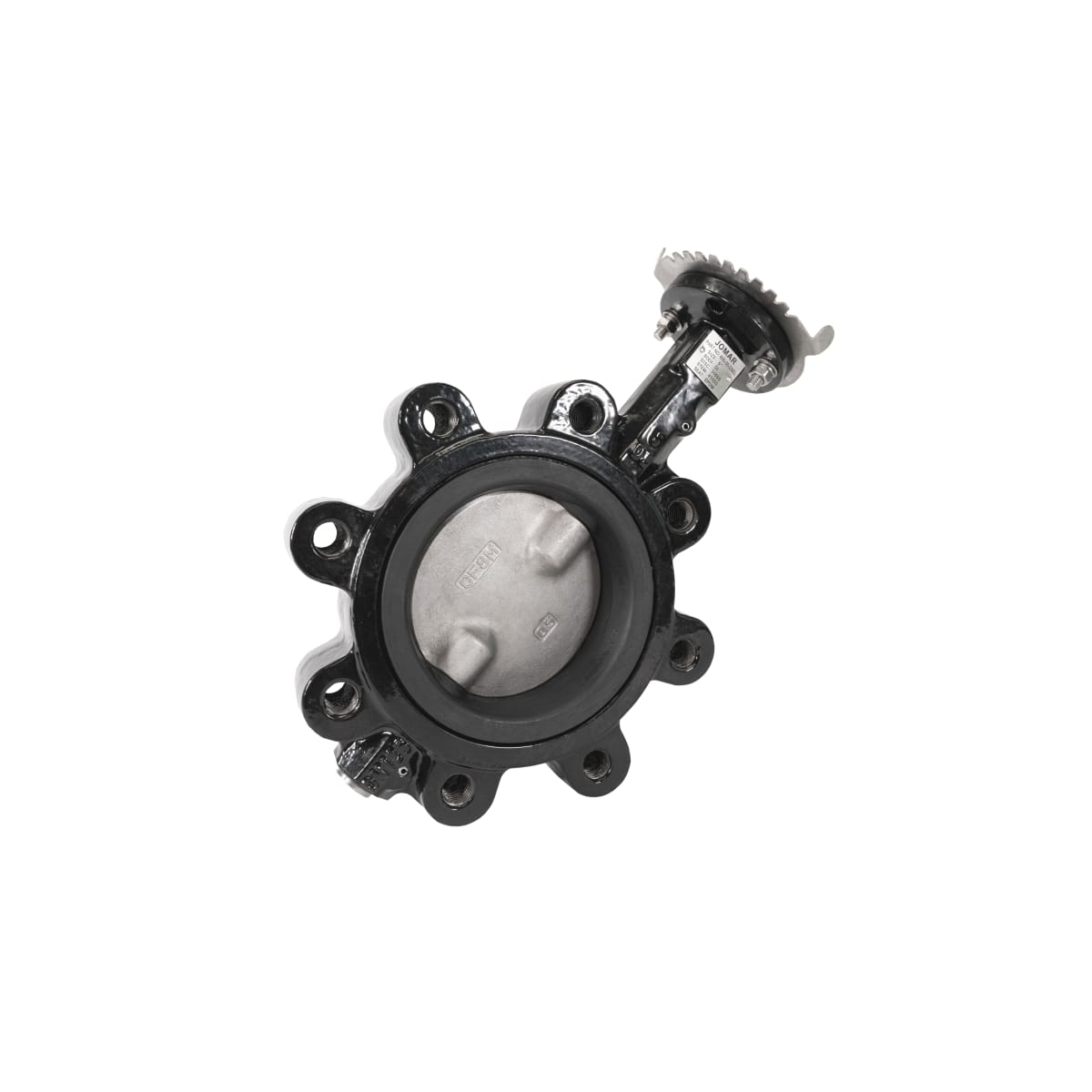

Jomar 600-08DSEB 8 in Lug Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc

Product Description

The Jomar Valve 600-08DSEB is an eight-inch lug style butterfly valve designed for commercial and industrial applications. This valve is rated for temperature ranges from negative thirty to two hundred fifty degrees Fahrenheit. It features a ductile iron body, stainless steel disc, and epoxy powder coating for durability.

• Works for applications up to 200 psi
• Accepts actuators with ISO 5211 mounting flange
• Eliminates flange gaskets with seat to flange seal

Product Highlights

This valve is bidirectional for dead-end service, ideal for pneumatic and electrical actuator mounting. The wetted surfaces contain less than 0.25 percent lead content to ensure safety.

Product Information

Standard Information

• Type: Lug Style
• Manufacturer: JOMAR

Technical Specifications

• Actuator Type: Bare Stem
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Finish: Epoxy Powder Coated
• Nominal Size: 8 in
• Series: 600
• Softgoods Material: EPDM/PTFE
• Stem & Pin Material: Carbon Steel (Locating Pin)
• Temperature Rating: -30 to 250 deg F
• Top to Inlet Center: 10.24 in
