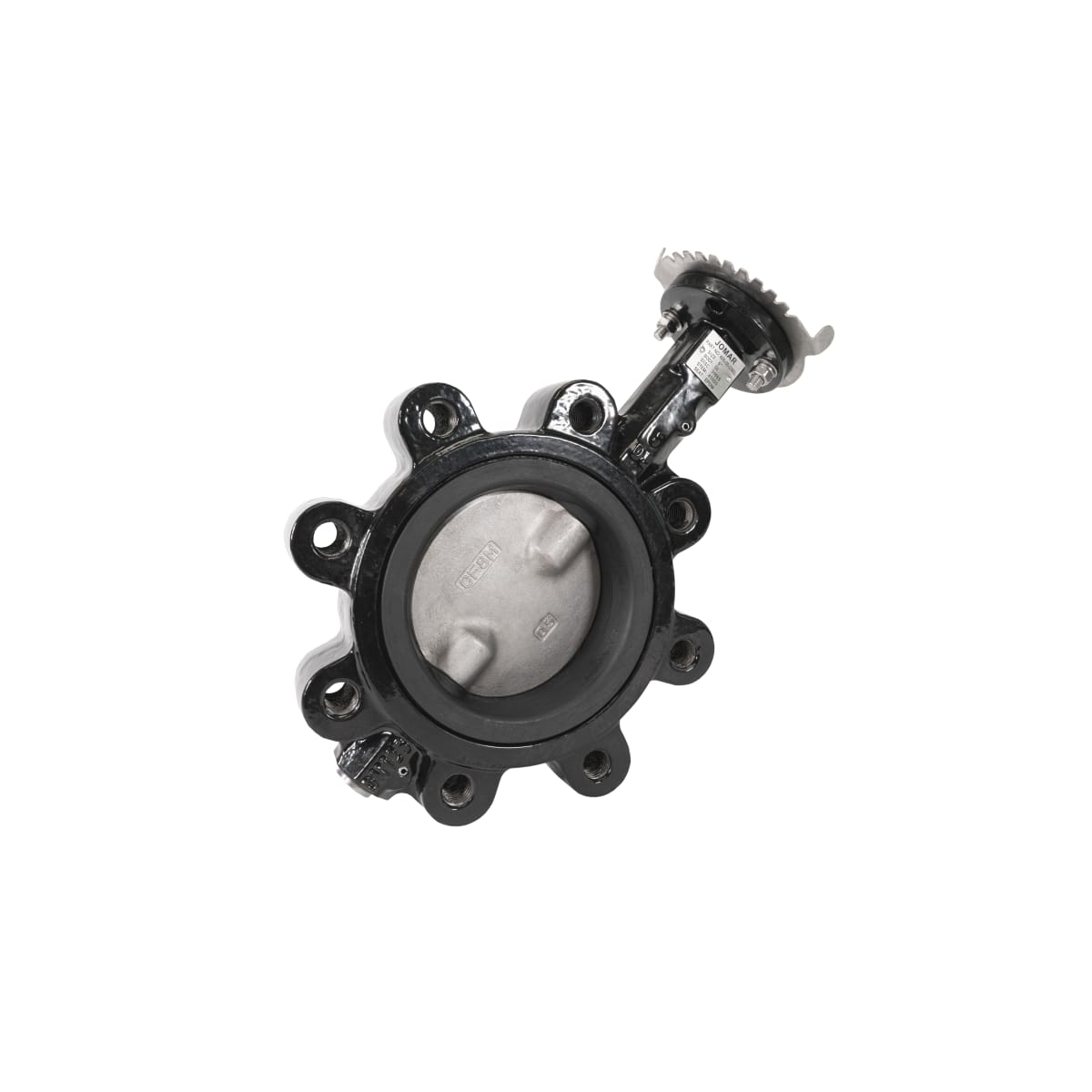

Jomar 600-06DSBL Lug Style Epoxy-Coated Ductile Iron Body Stainless Steel Disc

Product Description

Jomar offers the 600-06DSBL Lug Style Butterfly Valve, designed for use in various commercial and industrial applications. This valve features a six-inch nominal size and operates within a temperature range of ten to one hundred eighty degrees Fahrenheit. The Ductile Iron Body is epoxy-coated for durability, and the Stainless Steel Disc provides resistance to corrosion. The valve's lever handle actuator allows for easy operation and direct mounting of actuators with an ISO 5211 flange.

• Suitable for commercial and industrial uses
• Works under pressures up to 200 psi
• Bidirectional flow for dead end service

Product Highlights

This valve is ideal for systems requiring reliable shut-off capabilities.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 600-06DSBL

Technical Specifications

• Actuator Type: Lever Handle
• Body Material: Ductile Iron
• Disc Material: Stainless Steel
• Finish: Epoxy Powder Coated
• Nominal Size: 6 inches
• Series: 600
• Softgoods Material: EPDM/PTFE
• Stem & Pin Material: Carbon Steel (Locating Pin)
• Temperature Rating: 10 to 180 degrees Fahrenheit
• Top to Inlet Center: 8.9 inches
• Type: Lug Style
