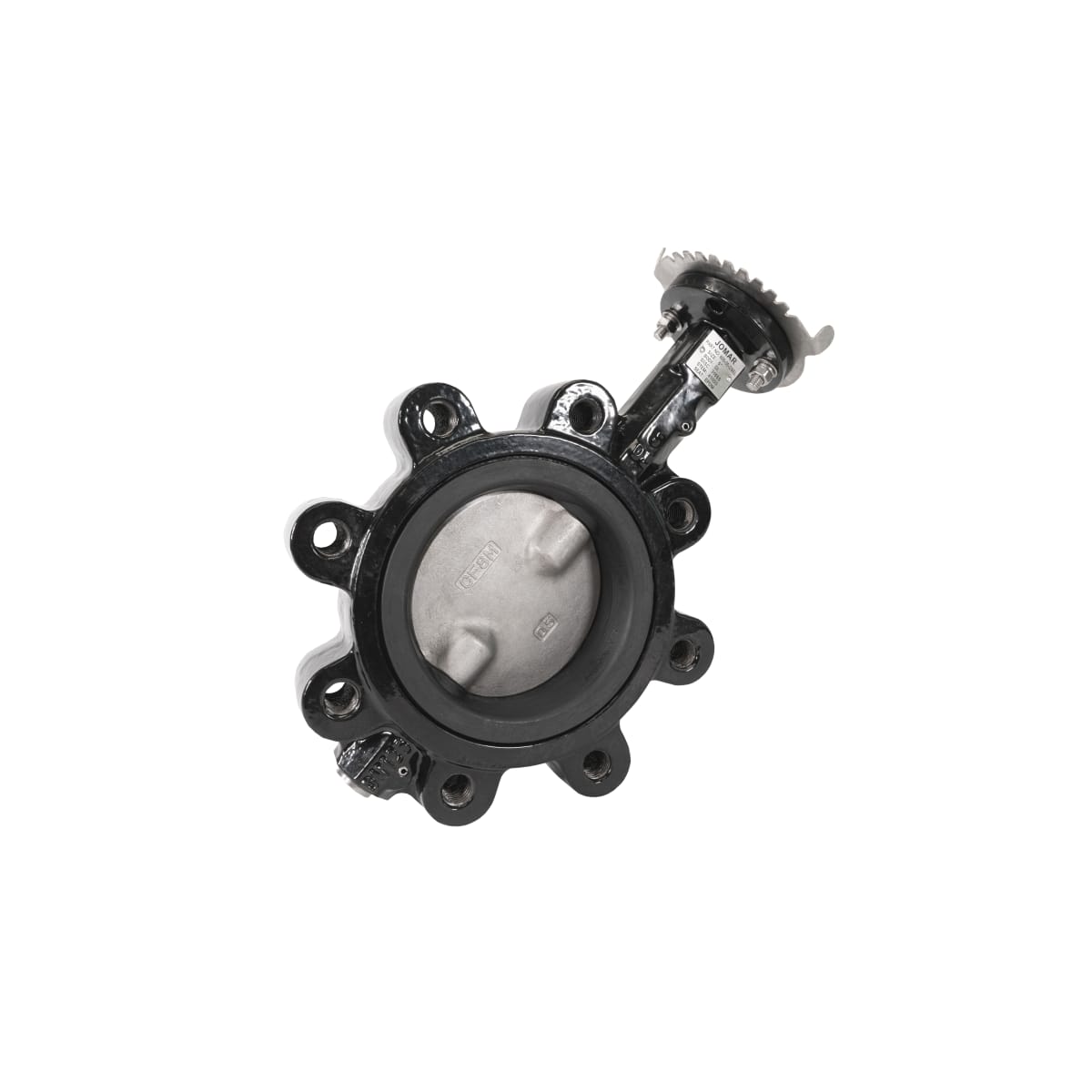

Jomar 600-05DSEL Lug Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc

Product Description

The Jomar Valve 600-05DSEL is a butterfly valve made with a lug style and is ideal for various commercial and industrial applications. This valve features a ductile iron body and a stainless steel disc to ensure durability and reliability. It can operate effectively in temperatures ranging from negative thirty to two hundred fifty degrees Fahrenheit. The valve provides a top to inlet center measurement of eight point thirty-nine inches, making it suitable for diverse installation requirements.

• Designed for commercial and industrial applications
• Enables direct mounting of pneumatic and electrical actuators
• Bidirectional operation for dead-end service

Product Highlights

This valve is engineered to work under high pressures of up to two hundred pounds per square inch and offers features like an EPDM O-ring and PTFE bushing.

Product Information

Standard Information

• Manufacturer: JOMAR
• Body Material: Ductile Iron

Technical Specifications

• Type: Lug Style
• Disc Material: Stainless Steel
• Temperature Rating: -30 to 250 deg F
• Nominal Size: 5 inches
• Actuator Type: Lever Handle
• Finish: Epoxy Powder Coated
• Softgoods Material: EPDM/PTFE
• Stem & Pin Material: Carbon Steel (Locating Pin)
• Series: 600
• Top to Inlet Center: 8.39 inches
