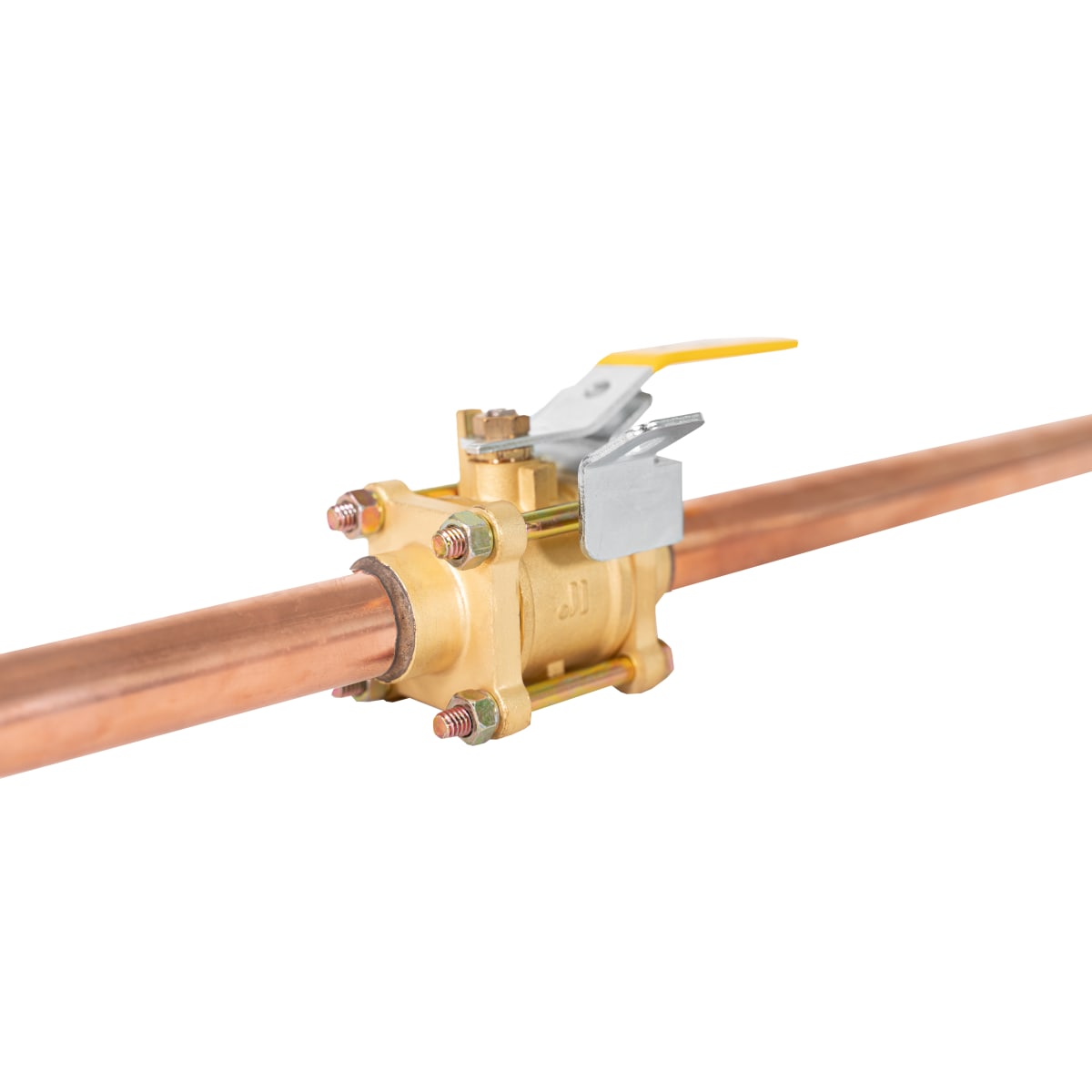

Jomar 500-807 Oxygen Cleaned for Medical Gas, 3 Piece 4 Bolt, Copper Stub Connection, 600 WOG

Product Description

The Jomar 500-807 is a medical gas ball valve designed for safe and efficient gas flow in medical applications. This 3-piece, 4-bolt valve is oxygen cleaned, ensuring it meets necessary standards for medical gas use.

• Oxygen cleaned for safe use with medical gases
• Rated for 600 psi WOG pressure
• Durable brass construction for long-lasting performance

Product Highlights

Ideal for use in medical gas systems, this valve features a latch-lock handle for easy operation and a chrome-plated brass ball for enhanced durability.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 500-807

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: C Stub
• Inlet to Outlet Length: 4.45 inches
• Nominal Size: 1-1/2 inches
• Pressure Rating: 600 psi WOG
• Softgoods Material: RPTFE/FKM
• Top to Inlet Center: 3.27 inches
• Trim Material: Brass Stem and RPTFE Seat
• Type: 3-Piece 4-Bolt
