Jomar 500-344 Full Port, 3 Piece 4 Bolt, Swing Out Body, Socket Weld Connection, 1000 WO

Product Description

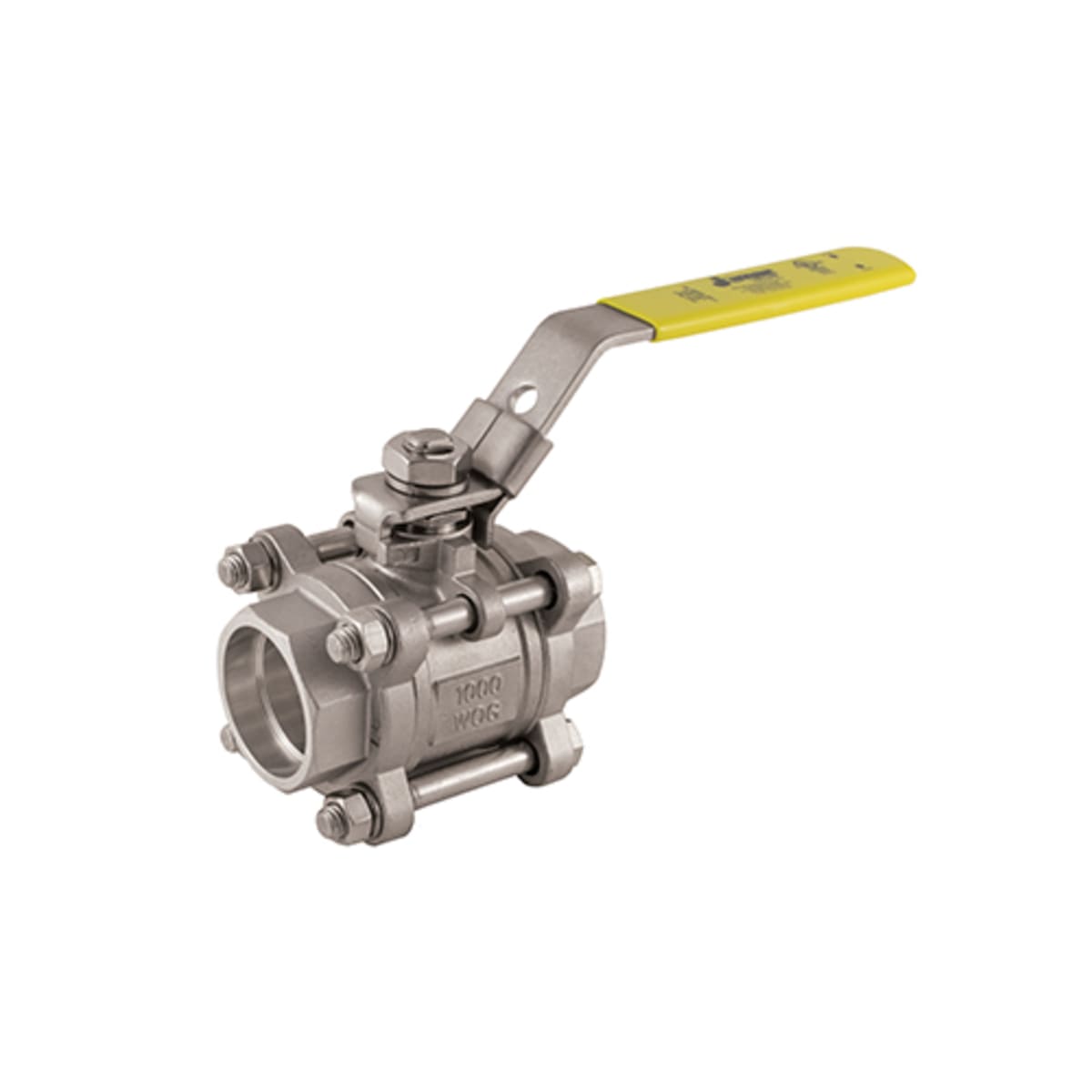

The Jomar 500-344 is a full port, three-piece, four-bolt ball valve. It features a swing-out body with a socket weld connection, designed for high performance in demanding applications. This valve is suitable for a nominal size of three-quarters of an inch and is rated for 1000 psi WOG pressure. It includes a latch-lock handle actuator for easy operation.

• Constructed from stainless steel for durability
• Designed for socket weld installation
• 100% leak tested for reliability

Product Highlights

This valve is ideal for various piping applications. It ensures secure flow control while maintaining optimal pressure levels.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 500-344

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: Socket Welded
• Inlet to Outlet Length: 3.03 inches
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 1000 psi WOG
• Softgoods Material: Hostaflon TFM/RPTFE
• Top to Inlet Center: 2.87 inches
• Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
• Type: 3-Piece 4-Bolt
