Jomar 500-310 Full Port 3 Piece 4 Bolt Swing Out Body Threaded Connection 1000 WOG

Product Description

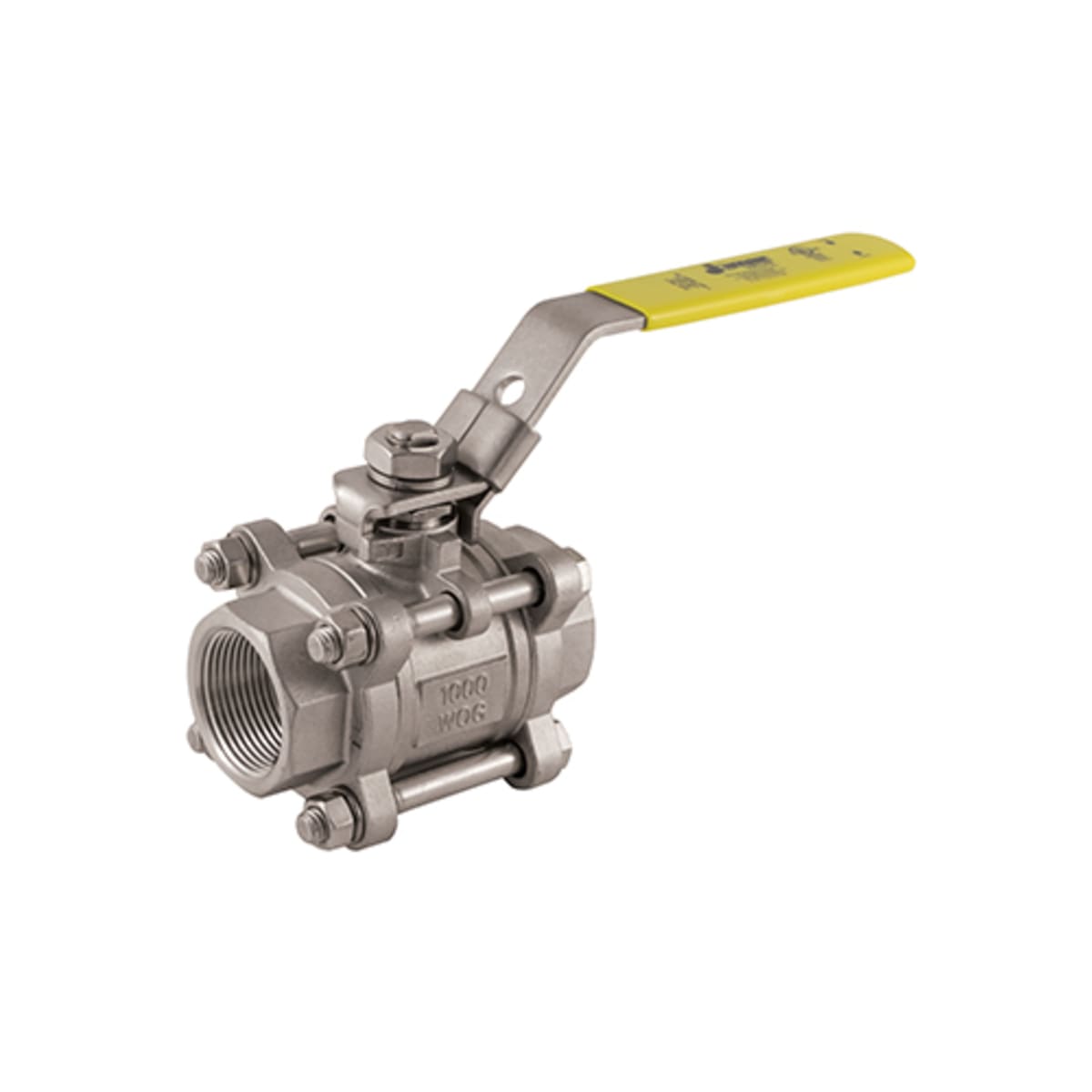

The Jomar 500-310 is a full port, three-piece, four-bolt ball valve. It features a swing-out body and a threaded connection that ensures reliable performance in various piping systems. This valve is suited for applications requiring a pressure rating of up to 1000 WOG (water, oil, and gas).

• Latch-lock handle for stability
• 100% leak tested for safe operation
• Constructed with stainless steel for durability

Product Highlights

This valve is ideal for trade professionals including plumbers, HVAC technicians, and those in mechanical fields. Its robust design and materials ensure it will perform under high-pressure conditions.

Product Information

Standard Information

• Manufacturer: Jomar
• MPN: 500-310

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Nominal Size: 3 in
• Inlet to Outlet Length: 7.52 in
• Top to Inlet Center: 5.26 in
• Port Type: Full
• Pressure Rating: 1000 psi WOG
• Softgoods Material: Hostaflon TFM/RPTFE
• Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
• Standards/Approval: ANSI B1.20.1/B16.11, API 598, CERT Certified
