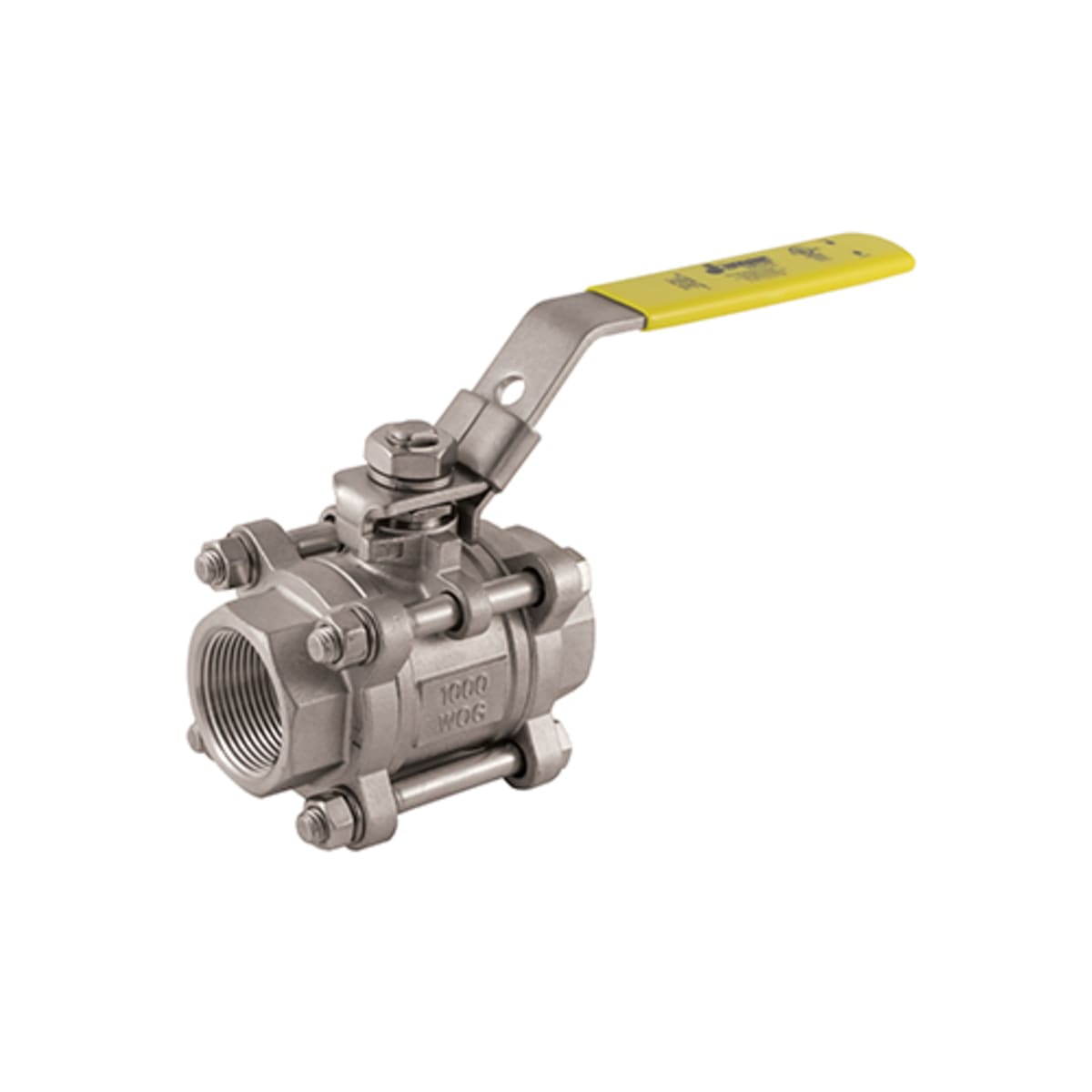

Jomar 500-306 Full Port, 3 Piece 4 Bolt, Swing Out Body, Threaded Connection, 1000 WOG

Product Description

The Jomar valve with MPN 500-306 is a stainless steel ball valve designed for durability and efficiency. This 3-piece valve features a full port design and a swing-out body for easy maintenance and installation. It supports a pressure rating of 1000 psi WOG and is equipped with a latch-lock handle actuator.

• Stainless steel construction for longevity
• Full port design allows optimal flow
• Latch-lock handle can be secured in open or closed positions

Product Highlights

This valve is suitable for various piping applications, enhancing flow control in plumbing systems. Its robust design ensures reliability under high pressure and minimizes the risk of leaks.

Product Information

Standard Information

• Brand: Jomar
• MPN: 500-306

Technical Specifications

• Actuator Type: Latch-Lock Handle
• Ball Material: Stainless Steel
• Body Material: Stainless Steel
• End Style: NPT
• Inlet to Outlet Length: 4.14 inches
• Nominal Size: 1-1/4 inches
• Port Type: Full
• Pressure Rating: 1000 psi WOG
• Softgoods Material: Hostaflon TFM/RPTFE
• Top to Inlet Center: 3.66 inches
• Trim Material: 316 Stainless Steel Stem and Hostaflon TFM 1600 Seat
• Type: 3-Piece 4-Bolt
