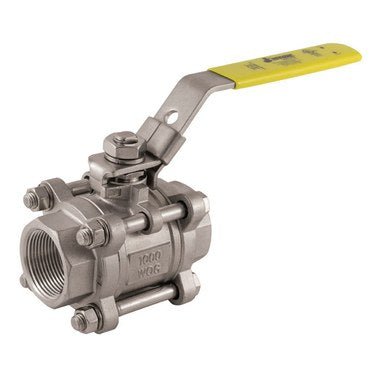

Jomar 500-304 Ball Valve T-SS-1000N-4B 316 Stainless Steel 3/4 Inch NPT 3-Piece Lever Handle Full Port 1000WOG

Product Description

The Jomar 500-304 is a ball valve made from 316 stainless steel. It is a three-piece design with a three-quarter inch NPT end connection. This valve is a full port model and rated for 1000 WOG pressure. It features a lever handle for easy operation, which can be locked in either an open or closed position. The swing-out body design provides easier maintenance access and operation.

• Three-quarter inch NPT end connection
• 1000 WOG pressure rating
• Stainless steel construction

Product Highlights

This ball valve is suitable for various plumbing applications where a reliable shut-off is needed. The full port design minimizes flow restriction, enhancing system efficiency. The stainless steel construction ensures durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Jomar
• Material: 316 Stainless Steel

Technical Specifications

• Size: 3/4 inches
• End Connection: NPT
• Product Type: 3-Piece
• Handle Type: Lever
• Port Type: Full
• Pressure Rating: 1000 WOG
• End to End Distance: 3.03 inches
