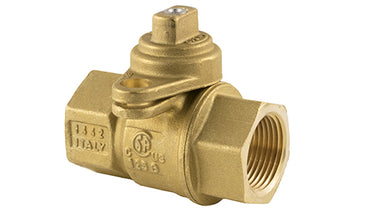

JOMAR 242-005B Utility Gas Ball Valve Full Port 125 PSIG

Product Description

The JOMAR Utility Gas Ball Valve with MPN 242-005B is designed for use in gas piping systems. This full port valve is rated for pressures up to 125 PSIG, making it suitable for a variety of applications. It features a lockwing cap actuator and chrome-plated brass ball for durability.

• Full port design for maximum flow capacity
• Lockwing cap for tamper resistance
• Leak-proof stem with a lifetime warranty

Product Highlights

Use this valve in residential or commercial settings where gas flow control is required.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 242-005B

Technical Specifications

• Actuator Type: Lockwing Cap
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Domestic/Import: Import
• End Style: FNPT
• Inlet to Outlet Length: 3.4 inches
• Nominal Size: 1 inch
• Port Type: Full
• Pressure Rating: 125 PSIG
• Softgoods Material: Buna-N/FKM/PTFE
• Temperature Rating: -40 to 300 degrees Fahrenheit
• Top to Inlet Center: 2.24 inches
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
