Product Description

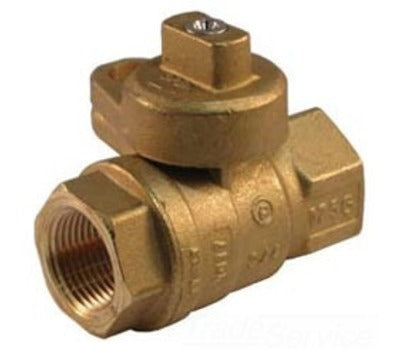

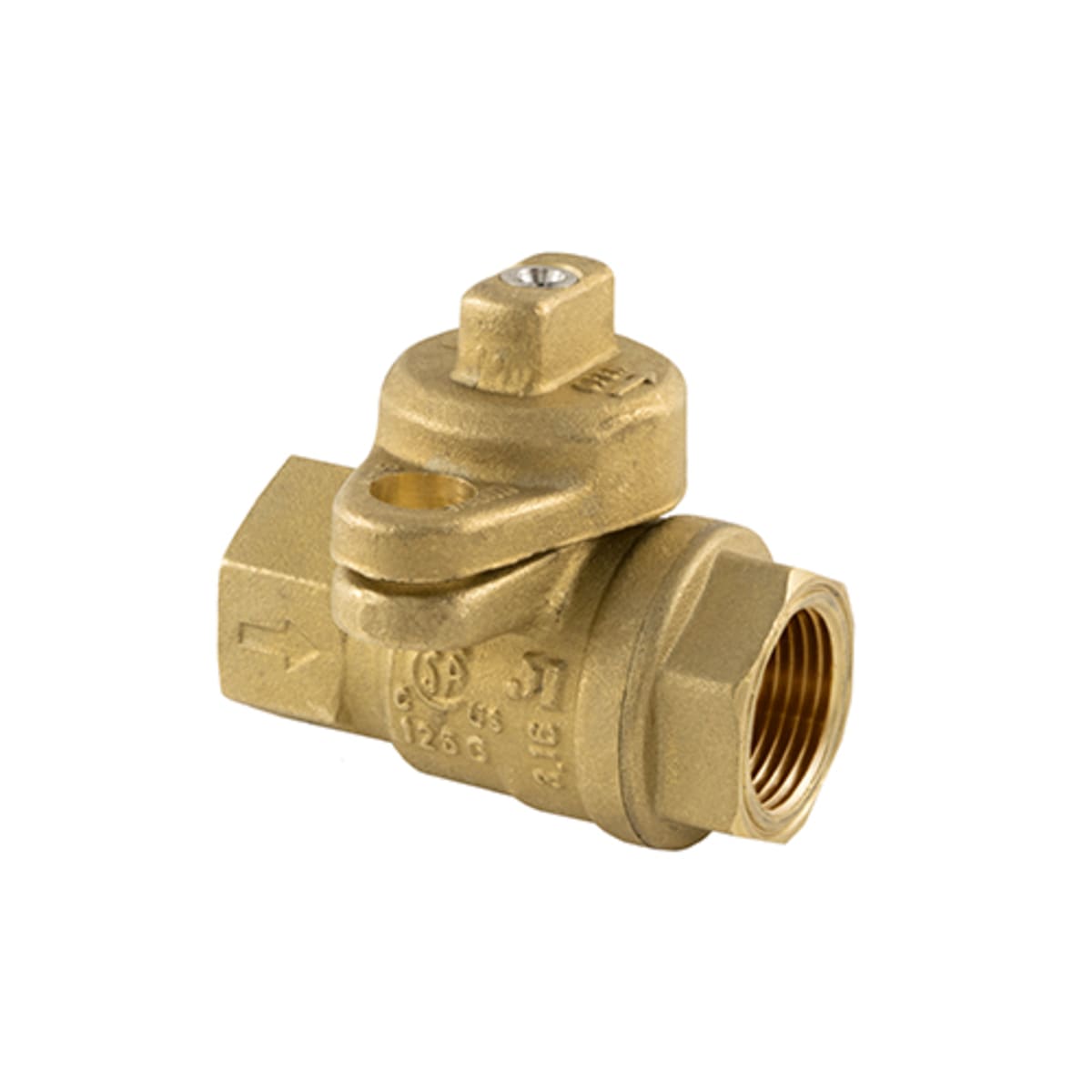

The Jomar 240-008B Utility Gas Ball Valve is designed for efficient gas control. This full port valve operates at a pressure rating of 175 PSIG and is suitable for use in a wide temperature range from -40 to 300 degrees Fahrenheit. It features a tamper-resistant lockwing cap for security and a chrome-plated brass ball for durability.
- Full port design
- Lockwing cap actuator
- Maintenance-free
Product Highlights
This gas ball valve from Jomar is engineered for easy installation and reliable performance. Its full port design ensures maximum flow and the lockwing cap adds protection against tampering.
Product Information
Standard Information
-
Manufacturer: Jomar
-
MPN: 240-008B
Technical Specifications
-
Nominal Size: 2 inches
-
Pressure Rating: 175 PSIG
-
Temperature Rating: -40 to 300 degrees Fahrenheit
-
Actuator Type: Lockwing Cap
-
Ball Material: Chrome Plated Brass
-
Body Material: Brass
-
Finish: Brass
-
Inlet to Outlet Length: 5 inches
-
Top to Inlet Center: 3.33 inches
-
Softgoods Material: Buna-N/FKM/PTFE
-
Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
-
Standards/Approval: CSA Certified, CW617N Body, MSS SP-110
-
Certifications: Meets or Exceeds Applicable Part of DOT 192
