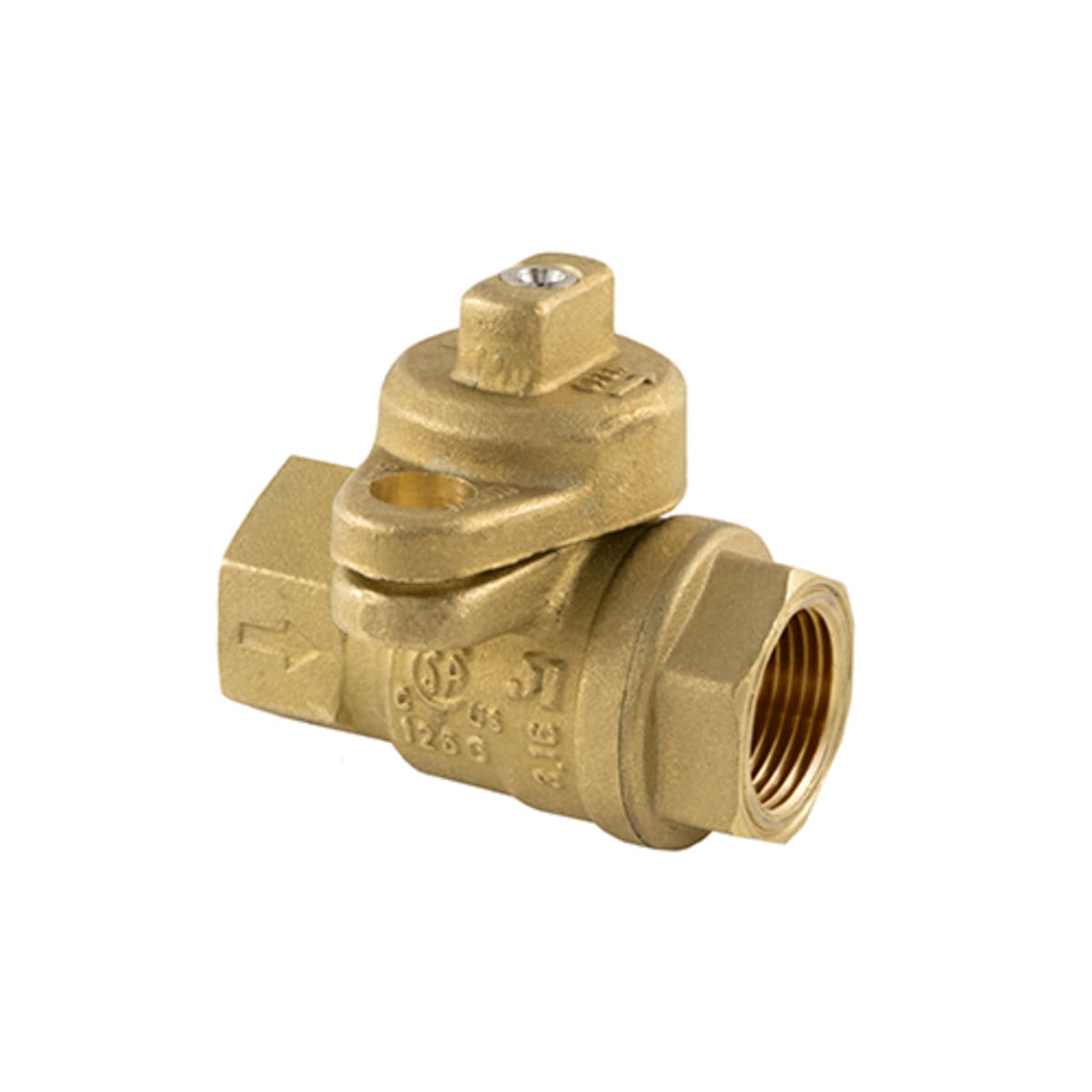

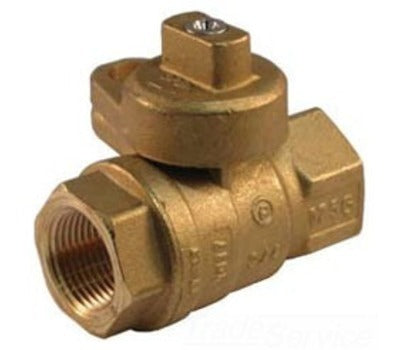

Jomar 240-007B Utility Gas Ball Valve, Full Port, 175 PSIG

Product Description

The Jomar 240-007B is a utility gas ball valve designed for use in various gas applications. This full port valve operates under a pressure rating of 175 PSIG and is constructed from durable brass material. It can function effectively within a temperature range of negative forty to three hundred degrees Fahrenheit. The valve includes a lockwing cap actuator for added safety and ease of use.

• Full port design for improved flow capability.
• Constructed from chrome plated brass for durability.
• Lifetime limited warranty ensuring long-term reliability.

Product Highlights

This utility gas ball valve features a maintenance-free design and is 100% leak tested for optimal performance.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 240-007B

Technical Specifications

• Actuator Type: Lockwing Cap
• Nominal Size: 1-1/2 inches
• Pressure Rating: 175 PSIG
• Temperature Rating: -40 to 300 degrees Fahrenheit
• Inlet to Outlet Length: 4.21 inches
• Top to Inlet Center: 3.03 inches
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Softgoods Material: Buna-N/FKM/PTFE
• Import/ Domestic: Import
