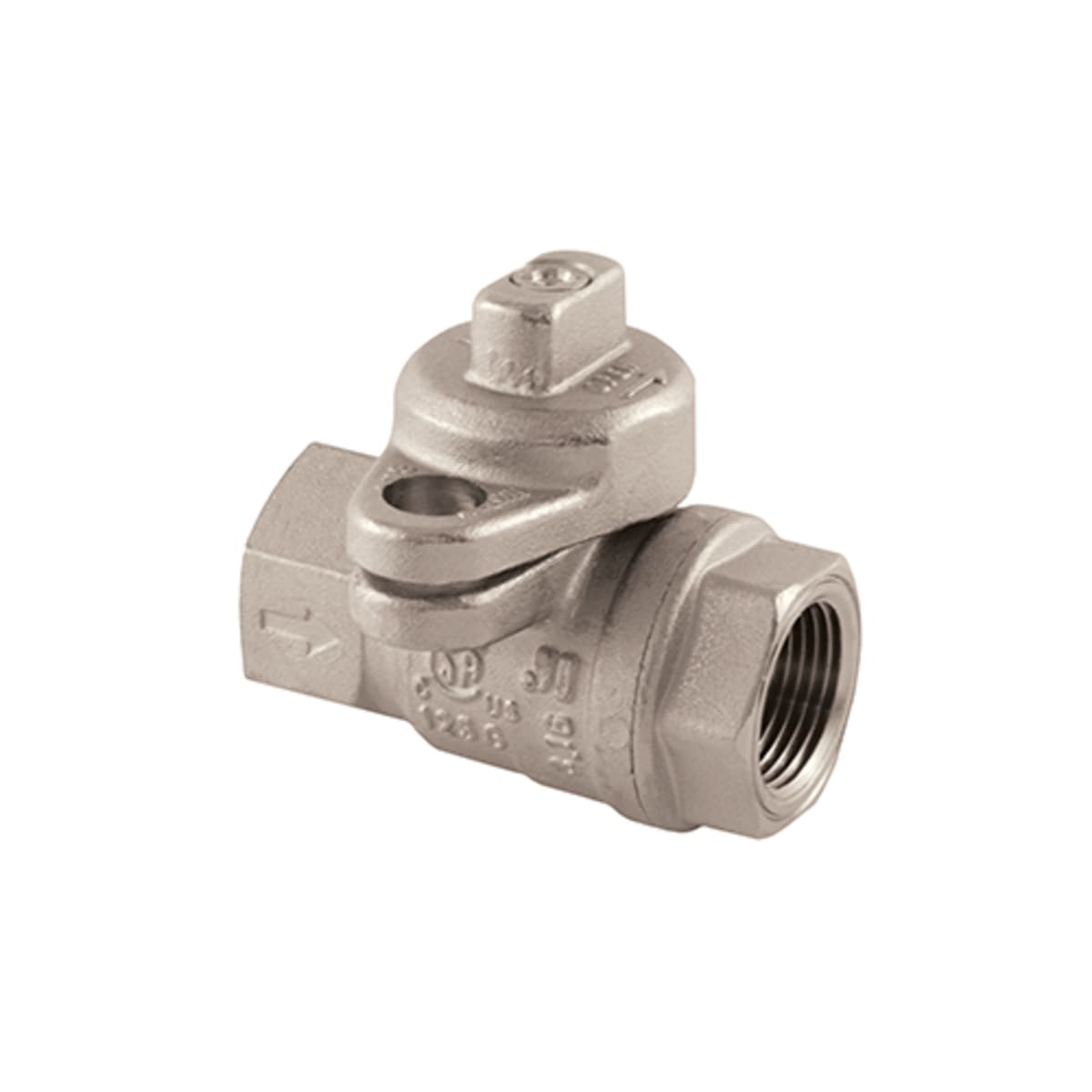

JOMAR 240-006T Utility Gas Ball Valve Full Port 175 PSIG

Product Description

Jomar 240-006T Utility Gas Ball Valve is designed for gas flow control. This valve has a full port design and operates with a pressure rating of 175 PSIG. It features a lockwing cap actuator for safety and ease of use.

• Full port design allows for maximum flow
• Lockwing cap provides tamper resistance
• Lifetime warranty on leak-proof stem

Product Highlights

Engineered for durability and reliability, the Jomar 240-006T valve is suitable for various gas applications. It is built to last, featuring a chrome-plated brass ball and a brass body construction.

Product Information

Standard Information

• Manufacturer: JOMAR
• Model Number: 240-006T

Technical Specifications

• Nominal Size: 1-1/4 inches
• Pressure Rating: 175 PSIG
• Temperature Rating: -40 to 300 degrees F
• Inlet to Outlet Length: 3.82 inches
• Top to Inlet Center: 2.46 inches
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Softgoods Material: Buna-N/FKM/PTFE
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Domestic/Import: Import
• Finish: TEA Coated
• Actuator Type: Lockwing Cap
• Port Type: Full
