Product Description

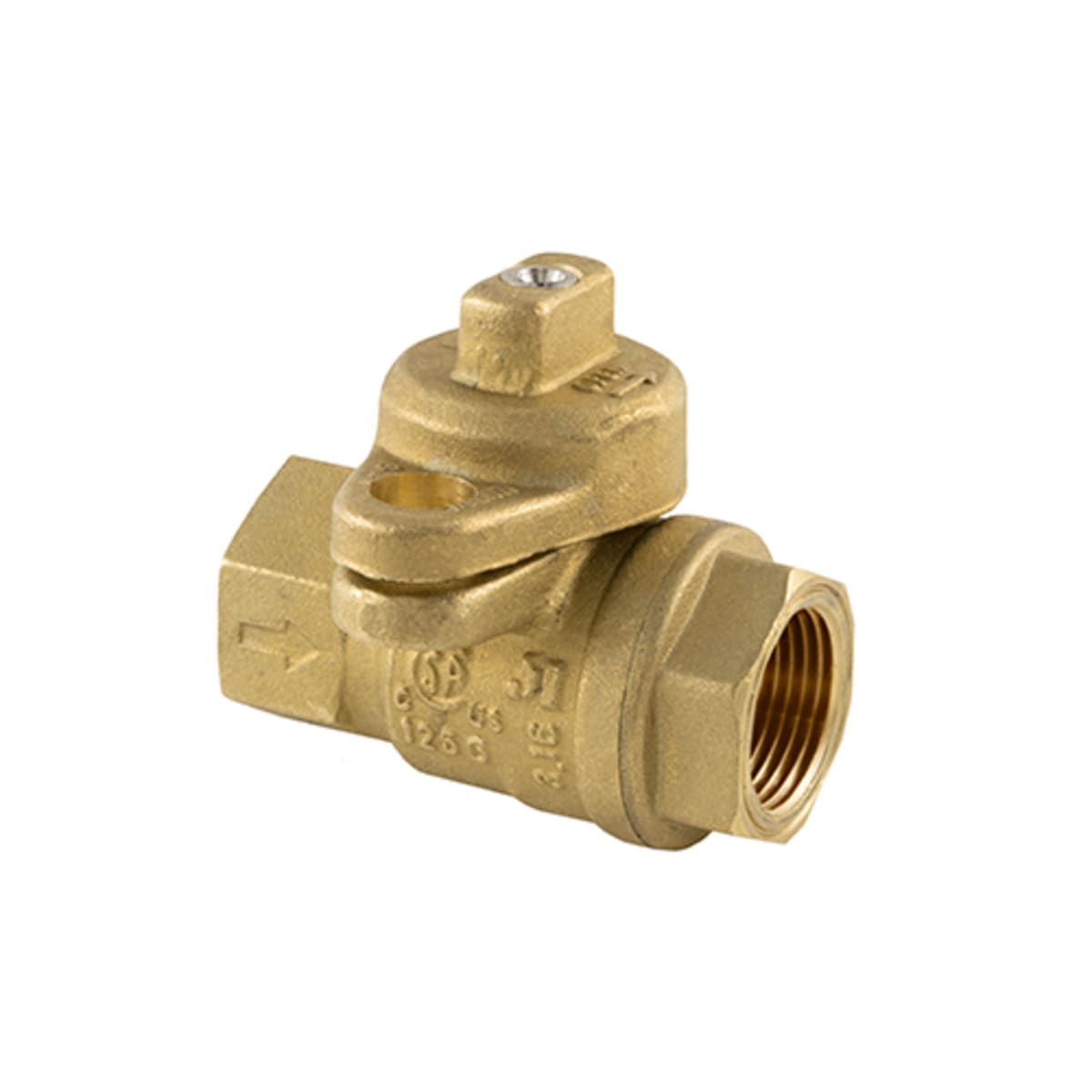

The Jomar 240-006B Utility Gas Ball Valve is designed for utility gas applications. This ball valve features a 1-1/4 inch nominal size and operates at up to 175 PSIG. It is equipped with a lockwing cap actuator, making it tamper-resistant.
- 1-1/4 inch nominal size
- 175 PSIG pressure rating
- Full port design
Product Highlights
Ideal for controlling gas flow in utility applications with its full port design and tamper-resistant features.
Product Information
Standard Information
-
UPC: 662527291844
-
Manufacturer: Jomar
-
Nominal Size: 1-1/4 inch
-
Pressure Rating: 175 PSIG
-
Material: Brass
Technical Specifications
-
Actuator Type: Lockwing Cap
-
Ball Material: Chrome Plated Brass
-
Body Material: Brass
-
Finish: Brass
-
Inlet to Outlet Length: 3.82 inches
-
Port Type: Full
-
Softgoods Material: Buna-N/FKM/PTFE
-
Temperature Rating: -40 to 300 deg F
-
Top to Inlet Center: 2.46 inches
-
Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
-
Standards/Approval: CSA Certified, CW617N Body, MSS SP-110, Meets or Exceeds Applicable Part of DOT 192
-
Warranty: Lifetime Limited
