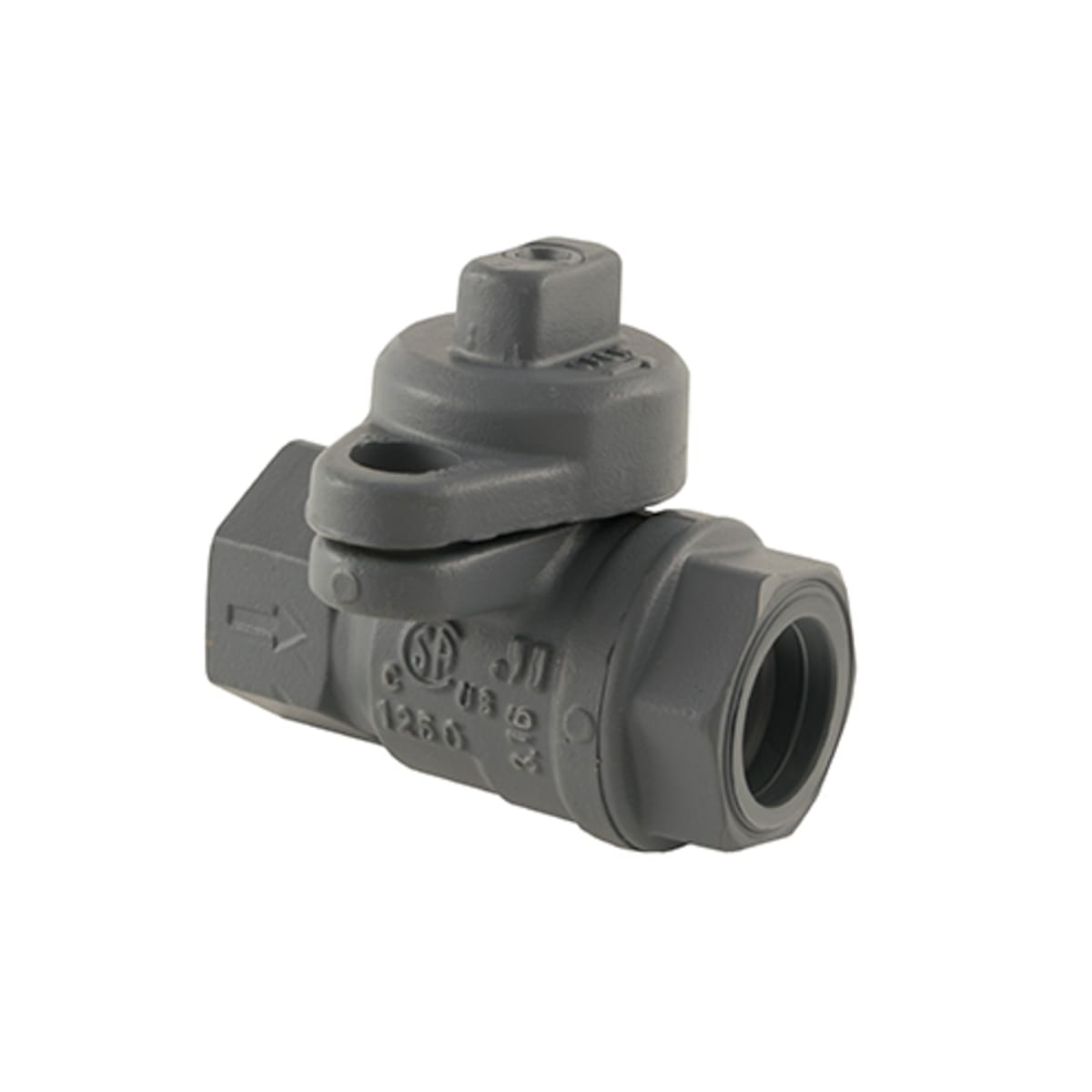

Jomar 240-005P Utility Gas Ball Valve Full Port 175 PSIG

Product Description

The Jomar Utility Gas Ball Valve, MPN 240-005P, is designed for safe and efficient gas flow control. This valve is rated for a pressure of one hundred seventy-five PSIG and accommodates temperatures from negative forty to three hundred degrees Fahrenheit. It features a full port design, which allows for maximum flow capability.

• Full port design for optimal flow
• Durable chrome-plated brass construction
• Lifetime warranty on leak-proof stem

Product Highlights

The valve includes a tamper-resistant lockwing cap that enhances security and can accommodate standard barrel locks. Its maintenance-free design ensures longevity, while the valve is 100% leak tested for reliability.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 240-005P

Technical Specifications

• Actuator Type: Lockwing Cap
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Inlet to Outlet Length: 3.4 inches
• Nominal Size: 1 inch
• Port Type: Full
• Pressure Rating: 175 PSIG
• Temperature Rating: -40 to 300 degrees Fahrenheit
• Softgoods Material: Buna-N/FKM/PTFE
• Top to Inlet Center: 2.24 inches
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
