Product Description

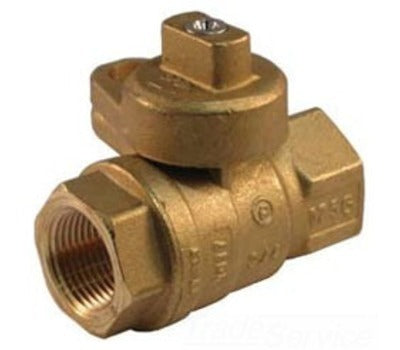

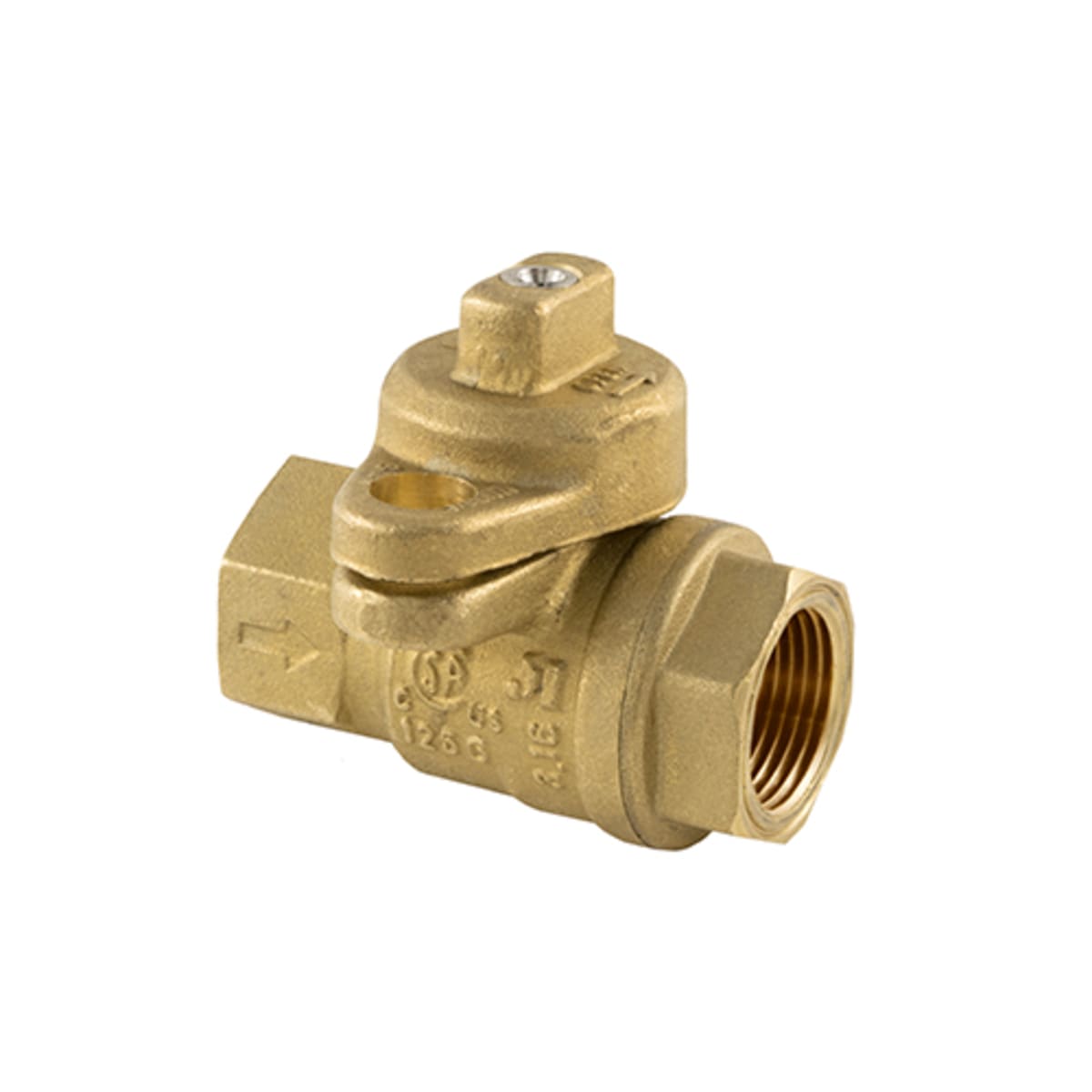

The Jomar 240-005B Utility Gas Ball Valve is built for reliability and performance. This valve features a full port design with a 1 inch nominal size, making it suitable for various gas line applications. Constructed with brass, this valve ensures durability and longevity in demanding environments.
- Tamper-resistant lockwing cap
- Full port to accommodate industry-leading stop changers
- 100% leak tested
Product Highlights
The Jomar 240-005B Utility Gas Ball Valve boasts a maintenance-free design and includes two Viton O-rings. It is pressure rated at 175 psig and can operate in temperatures ranging from -40 to 300 degrees Fahrenheit.
Product Information
Standard Information
-
Brand: Jomar
-
MPN: 240-005B
Technical Specifications
-
Actuator Type: Lockwing Cap
-
Ball Material: Chrome Plated Brass
-
Body Material: Brass
-
Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
-
Finish: Brass
-
Inlet to Outlet Length: 3.4 in
-
Nominal Size: 1 in
-
Port Type: Full
-
Pressure Rating: 175 psig
-
Softgoods Material: Buna-N/FKM/PTFE
-
Temperature Rating: -40 to 300 deg F
-
Top to Inlet Center: 2.24 in
-
Standards/Approval: CSA Certified, CW617N Body, MSS SP-110, Meets or Exceeds Applicable Part of DOT 192
