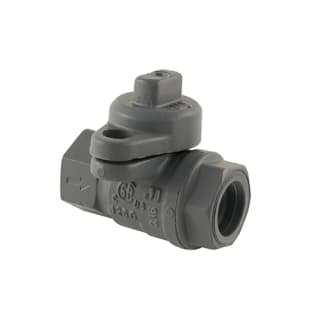

Jomar 240-004P Utility Gas Ball Valve Full Port 175 PSIG

Product Description

The Jomar Utility Gas Ball Valve, MPN 240-004P, is a reliable choice for gas flow applications. This ball valve features full port design, allowing maximum flow with minimal restriction. It operates at a pressure rating of 175 PSIG and has a temperature range of minus forty to three hundred degrees Fahrenheit.

• Made with chrome plated brass material
• Includes tamper resistant lockwing cap
• Maintenance-free design

Product Highlights

This valve is ideal for residential, commercial, and industrial gas control applications. The durable brass body ensures longevity and performance reliability.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 240-004P

Technical Specifications

• Actuator Type: Lockwing Cap
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Pressure Rating: 175 PSIG
• Temperature Rating: -40 to 300 degrees Fahrenheit
• Nominal Size: 3/4 inch
• Inlet to Outlet Length: 2.91 inches
• Top to Inlet Center: 1.87 inches
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Softgoods Material: Buna-N/FKM/PTFE
• Finish: AGA Painted
• Port Type: Full
• Domestic/Import: Import
