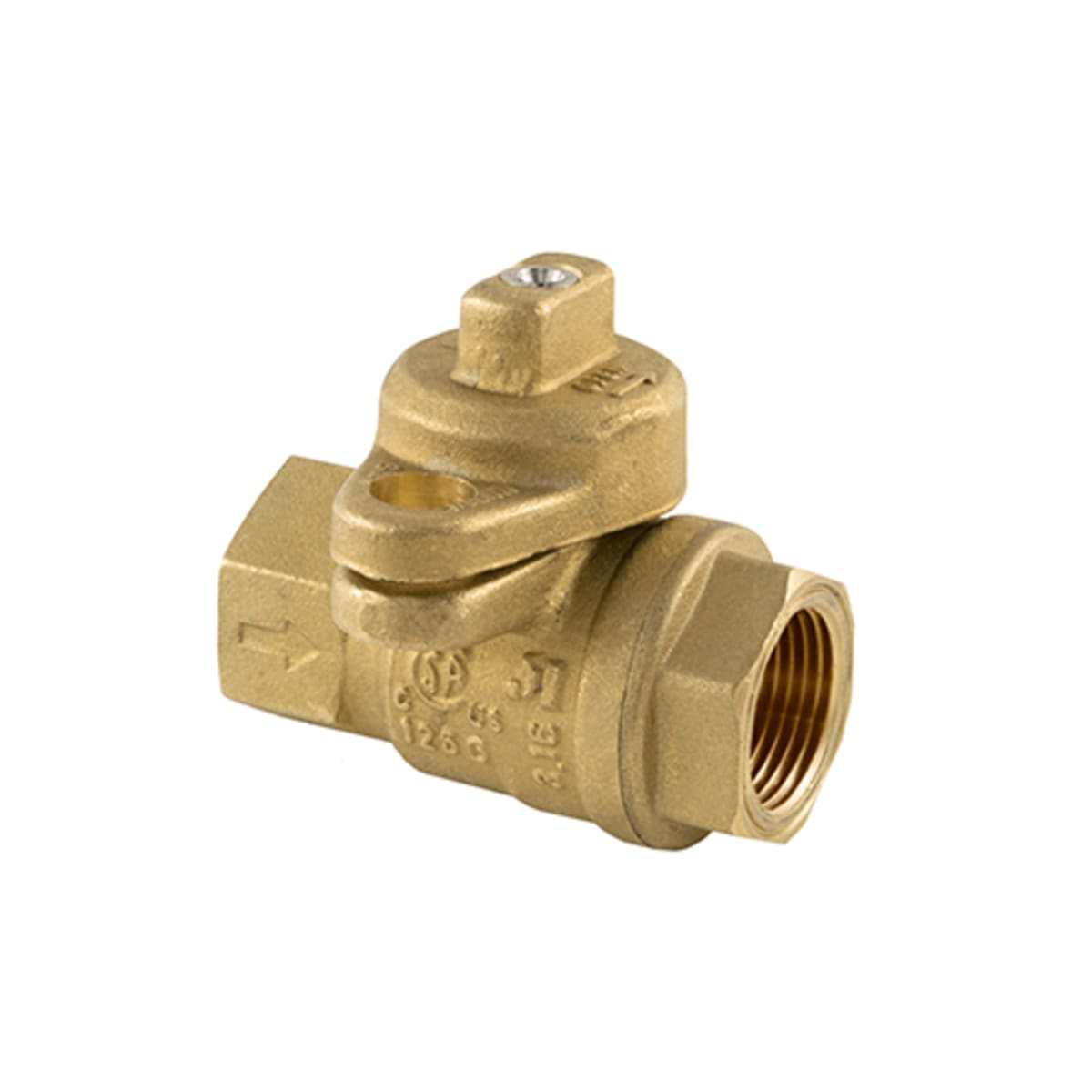

Jomar 240-003B Utility Gas Ball Valve, Full Port, 175 PSIG

Product Description

The Jomar 240-003B is a utility gas ball valve designed for full port applications. It supports a pressure rating of 175 psig, making it suitable for various gas systems. This valve can operate effectively within a temperature range of negative forty to three hundred degrees Fahrenheit. The valve features a lockwing cap actuator and a chrome-plated brass ball, ensuring durability and reliability in service.

• Full port design for optimal flow
• Locking handle for safety
• Leak-proof stem with a lifetime warranty

Product Highlights

This valve meets CSA standards and is suitable for many gas applications.

Product Information

Standard Information

• Brand: Jomar
• MPN: 240-003B

Technical Specifications

• Actuator Type: Lockwing Cap
• Nominal Size: 1/2 in
• Pressure Rating: 175 psig
• Temperature Rating: -40 to 300 deg F
• Inlet to Outlet Length: 2.74 in
• Top to Inlet Center: 1.87 in
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Softgoods Material: Buna-N/FKM/PTFE
• Trim Material: Brass Stem and Hostaflon TFM 1600 Seat
• Domestic/Import: Import
