Jomar 210-608 CPVC Copper Tube Size Solvent Connection 150 WOG

Product Description

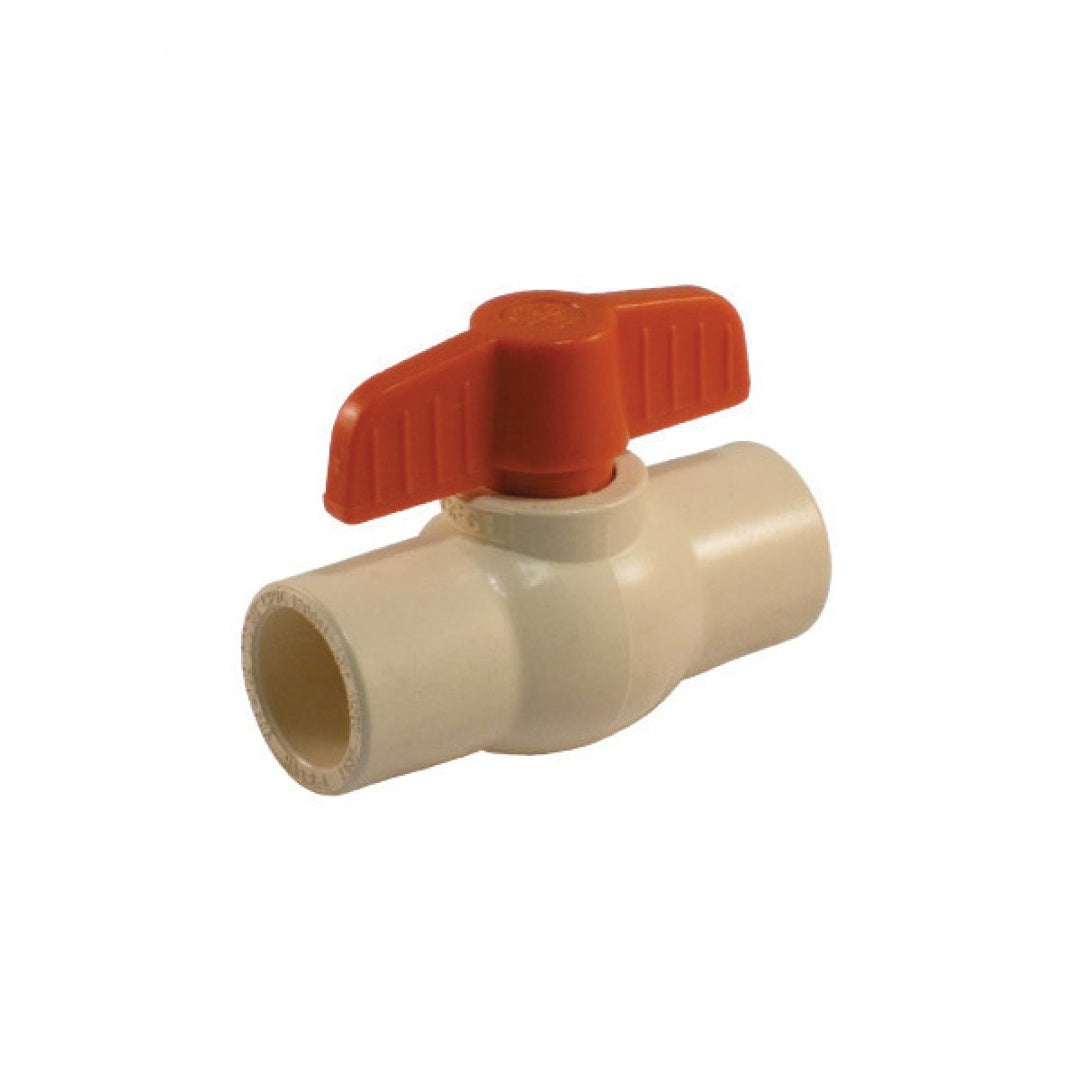

The Jomar Valve 210-608 is a reliable CPVC ball valve with a quarter-turn operation. This valve is suitable for CPVC and copper tube systems, featuring a solvent connection designed to manage up to 150 psi WOG. The Jomar 210-608 operates efficiently in temperatures ranging from 32 to 180 degrees Fahrenheit. Key components include a CPVC ball, body, and stem along with a PTFE seat trim and EPDM soft goods.

• 150 psi at 73 °F continuous pressure rating
• Wetted surfaces contain less than 0.25% lead content
• Compatible with hot and cold water systems

Product Highlights

The Jomar 210-608 valve is perfect for managing hot and cold water systems in residential and commercial settings. With its large port and easy-to-operate quarter-turn function, it ensures efficient flow control and minimal maintenance.

Product Information

Standard Information

• Manufacturer: Jomar
• Model Number: 210-608

Technical Specifications

• Nominal Size: 2 in
• Connection Type: CTS x Solvent
• Pressure Rating: 150 psi WOG
• Temperature Rating: 32 to 180 °F
• Orifice Size: 1.42 in
• Inlet to Outlet Length: 5.69 in
• Top to Inlet Center: 4.53 in
• Body Material: CPVC
• Ball Material: CPVC
• Stem Material: CPVC
• Seat Trim: PTFE
• Softgoods Material: EPDM
• Color: Bone
• Standards/Approval: ASTM F1970, IAPMO PS 112-99, NSF 61-8/372, NSF 61 - Annex G, UPC Listed
