Jomar 210-607 CPVC Copper Tube Solvent Connection 150 WOG

Product Description

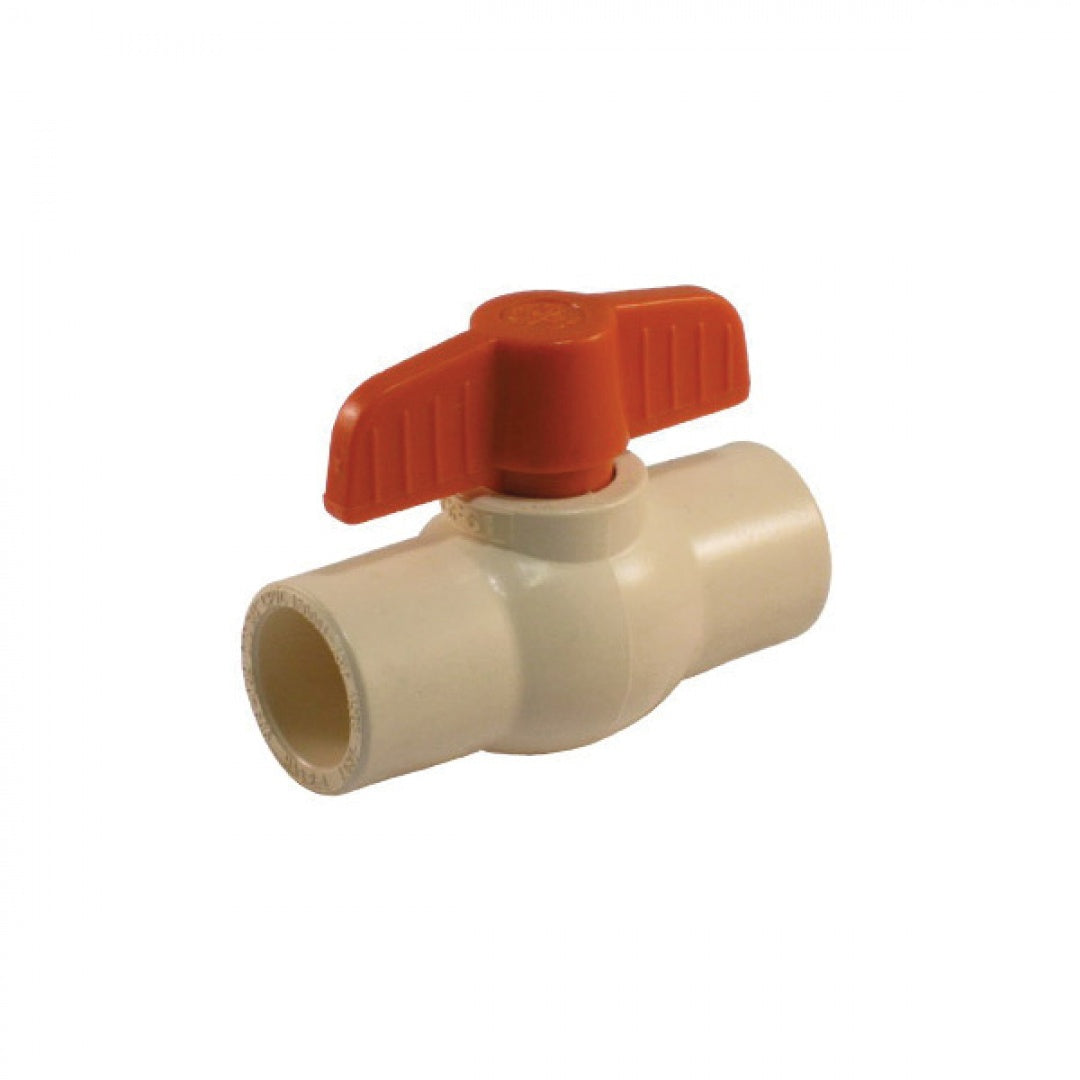

The Jomar 210-607 CPVC Ball Valve features a copper tube size with a solvent connection and is rated for 150 WOG. It ensures reliable operation with quarter-turn functionality.

• Quarter-turn operation
• CTS connections
• For hot and cold water systems

Product Highlights

This valve is made from CPVC material and has an EPDM O-ring for additional durability.

Product Information

Standard Information

• Manufacturer: Jomar
• Model Number: 210-607
• UPC: 662527293268

Technical Specifications

• Nominal Size: 1-1/2 inches
• End Style: CTS x Solvent
• Pressure Rating: 150 psi WOG
• Temperature Rating: 32 to 180 degrees Fahrenheit
• Ball Material: CPVC
• Body Material: CPVC
• Orifice Size: 1.18 inches
• Inlet to Outlet Length: 4.49 inches
• Top to Inlet Center: 3.86 inches
• Trim Material: CPVC Stem and PTFE Seat
• Softgoods Material: EPDM
• Port Type: Large
• Standards/Approval: ASTM F1970, IAPMO PS 112-99, NSF 61-8/372, NSF 61 - Annex G, UPC Listed
