Jomar 210-547 Tru-Union PVC, Schedule 80, Threaded and Solvent Connections, 150 WOG

Product Description

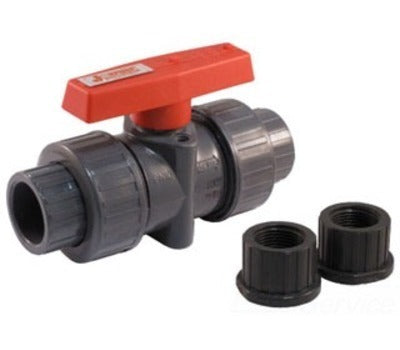

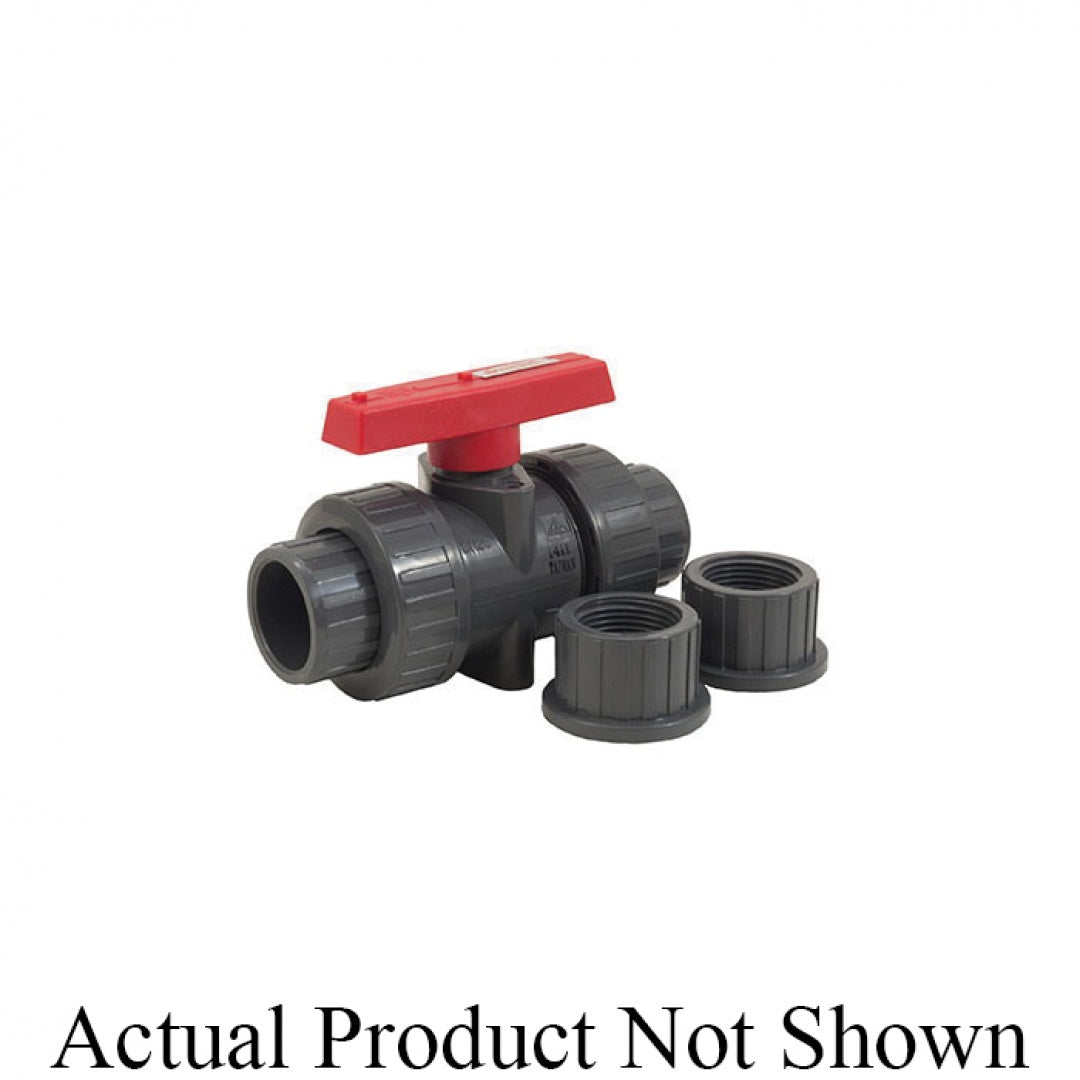

The Jomar MPN 210-547 Tru-Union PVC Ball Valve provides reliable service for various pipe systems. Suitable for Schedule 80 applications, it features threaded and solvent connections and is rated for 150 psi WOG.

• Easy installation with hand-tightened union nuts
• Full port design minimizes flow restrictions
• Mounting pads for electric or pneumatic actuation

Product Highlights

This valve offers a versatile solution to manage fluid control. Its full port design ensures minimal flow resistance. The hand-tightened union nuts make installation easy while allowing for seamless line breakdowns without additional unions.

Product Information

Standard Information

• Manufacturer: Jomar
• MPN: 210-547
• UPC: 662527293176

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• End Style: NPS
• Inlet to Outlet Length: 6.89 in
• Nominal Size: 1-1/2 in
• Port Type: Full
• Pressure Rating: 150 psi WOG
• Softgoods Material: FKM
• Temperature Rating: 73 deg F
• Trim Material: PTFE Seat and UPVC Stem
• Specifications Met: ANSI B1.20.1, ASTM F1970
