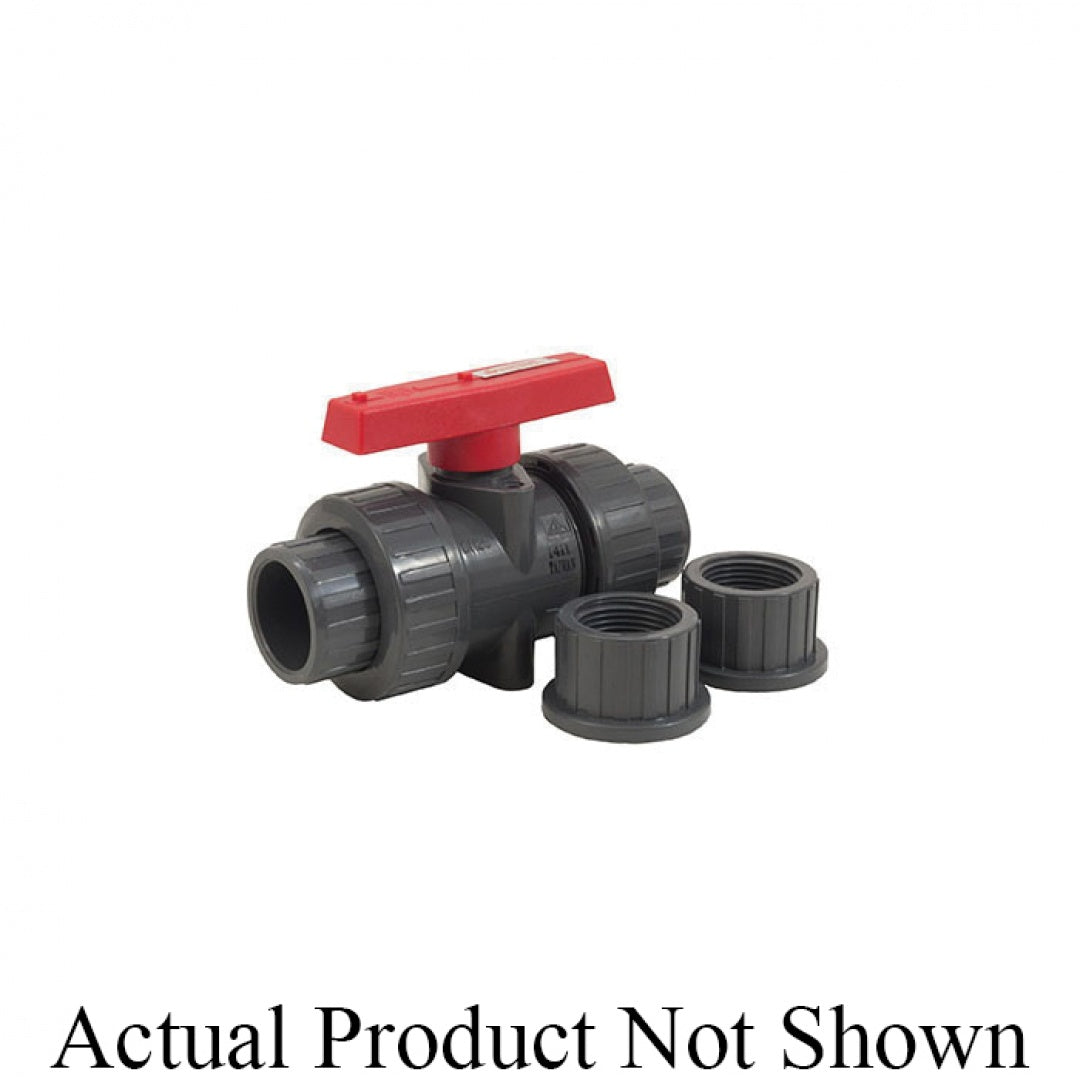

Jomar 210-546 Tru-Union PVC Schedule 80 Threaded and Solvent Connections 150 WOG

Product Description

The Jomar Tru-Union Ball Valve with MPN 210-546 is a reliable choice for piping and fittings applications. This valve features a 1-1/4 inch nominal size and a full port design, ensuring minimal flow restrictions. The valve body and ball are made from UPVC, providing durability and resistance to corrosion. The valve has a maximum pressure rating of 150 psi WOG at 73 degrees Fahrenheit.

• Easy installation with hand-tightened union nuts
• Full port design for minimal flow restrictions
• Mounting pads for electric or pneumatic actuation

Product Highlights

The Jomar 210-546 Tru-Union Ball Valve offers easy installation and maintenance. Its full port design minimizes flow restrictions, and the valve includes both threaded and socket ends for versatile connections.

Product Information

Standard Information

• Brand: Jomar
• MPN: 210-546
• UPC: 662527293169

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• Trim Material: PTFE Seat and UPVC Stem
• End Style: NPS
• Nominal Size: 1-1/4 inches
• Port Type: Full
• Pressure Rating: 150 psi WOG
• Softgoods Material: FKM
• Temperature Rating: 73 degrees Fahrenheit
• Inlet to Outlet Length: 6.61 inches
