Jomar 210-543 Tru-Union PVC Valve Schedule 80 Threaded and Solvent Connections 150 WOG

Product Description

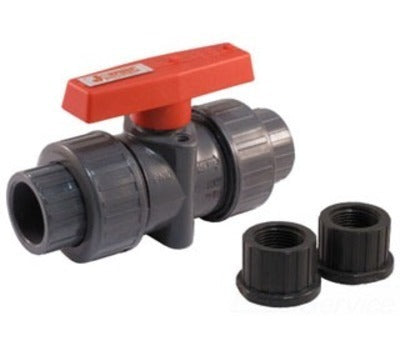

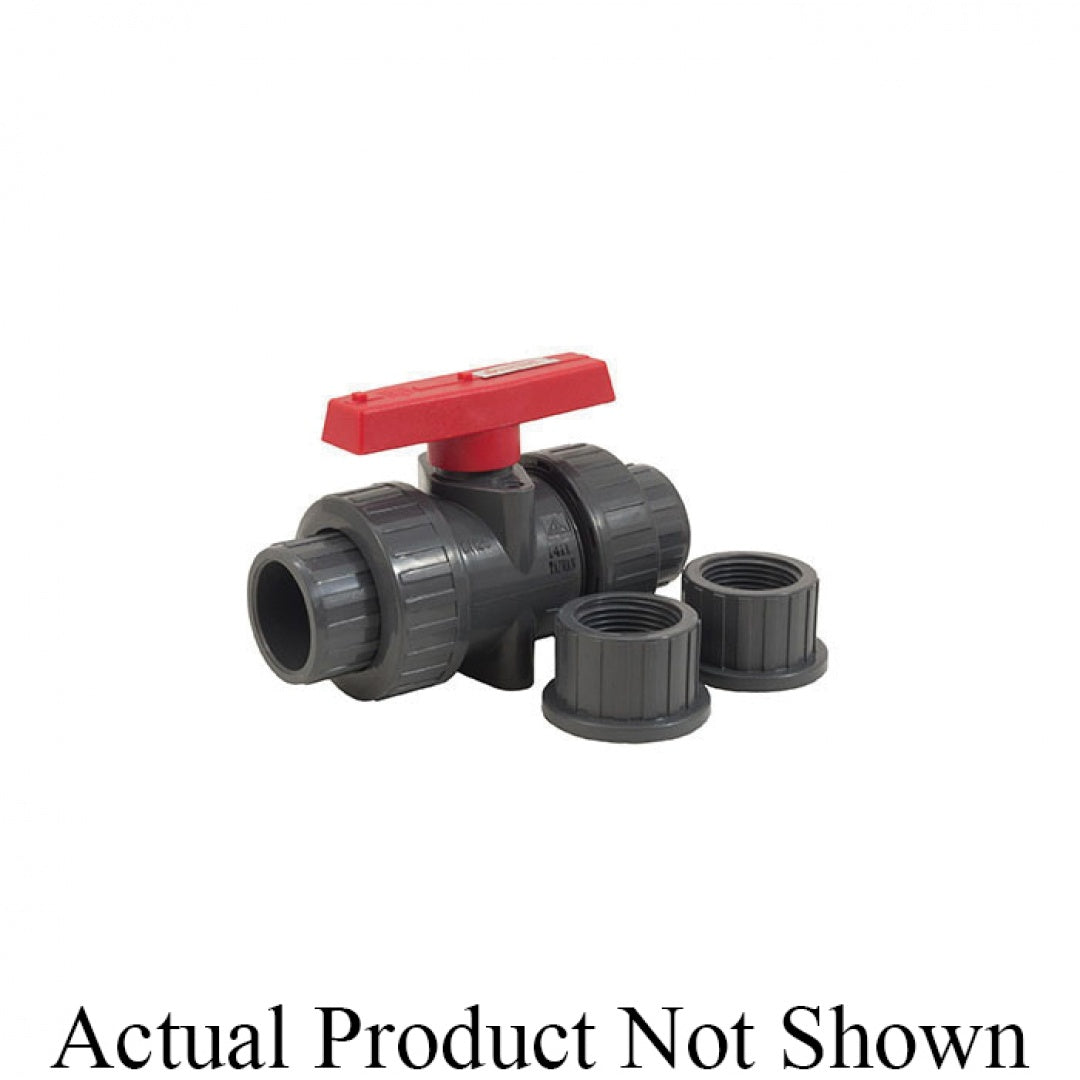

The Jomar 210-543 Tru-Union PVC Valve is built for durability and ease of use. This valve features Schedule 80, threaded and solvent connections, and operates up to 150 psi WOG.

• Easy installation with hand-tightened union nuts
• Full port design minimizes flow restrictions
• Includes both threaded and socket ends

Product Highlights

This valve is designed for easy installation and maintenance. It breaks down lines without additional unions and has mounting pads for electric or pneumatic actuation. The wetted surface has less than 0.25% lead content, making it safe and reliable.

Product Information

Standard Information

• Brand: Jomar
• Model Number: 210-543
• UPC: 662527293138

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• End Style: NPS
• Inlet to Outlet Length: 4.49 in
• Nominal Size: 1/2 in
• Port Type: Full
• Pressure Rating: 150 psi WOG
• Softgoods Material: FKM
• Temperature Rating: 73 deg F
• Trim Material: PTFE Seat and UPVC Stem
