Jomar 210-228 PVC Schedule 80 Solvent Connection 150 WOG

Product Description

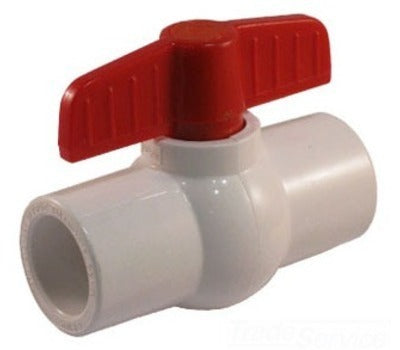

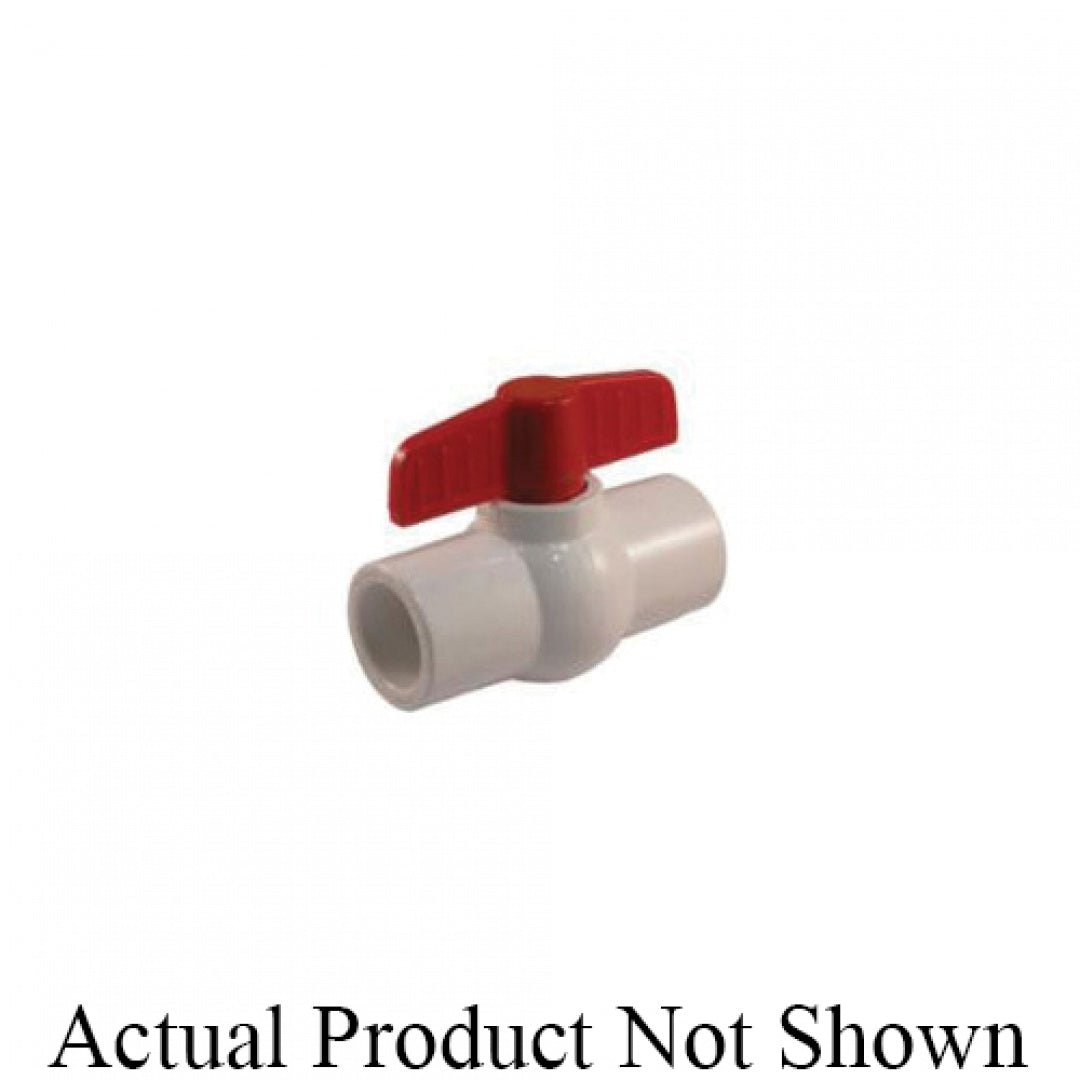

The Jomar 210-228 is a PVC ball valve designed for schedule 80 solvent connections with a 150 psi WOG rating. Built with high-quality UPVC materials, this valve ensures minimal pressure drop and turbulence, making it ideal for various piping and fitting applications.

• Each valve tested in open and closed position
• Large ports for greater flow
• Corrosion-resistant PVC material

Product Highlights

This PVC ball valve by Jomar comes with features like a large port for more flow and corrosion-resistant materials. It is perfect for handling pressures up to 150 psi at 73 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Jomar
• MPN: 210-228
• UPC: 662527292896

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• End Style: Solvent
• Inlet to Outlet Length: 5.79 in
• Nominal Size: 2 in
• Port Type: Large
• Pressure Rating: 150 psi WOG
• Softgoods Material: EPDM
• Temperature Rating: 73 deg F
• Trim Material: EPDM/UPVC Stem
• Standards Met: ASTM F1970, NSF/ANSI 14, NSF 61 - Annex G/61-8/372
