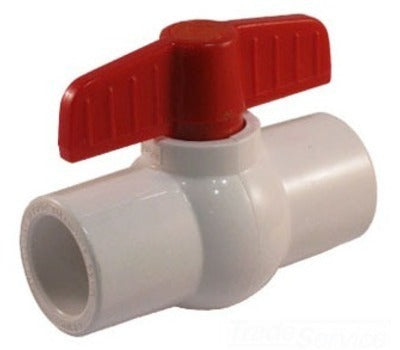

Jomar 210-227 PVC Schedule 80 Solvent Connection 150 WOG

Product Description

The Jomar 210-227 PVC Schedule 80 Solvent Connection is designed for professional use in plumbing and industrial applications. This valve features a 1-1/2 inch nominal size and can handle up to 150 psi WOG at 73 degrees Fahrenheit.

• Tested in both open and closed positions.
• Minimal pressure drop and turbulence.
• Corrosion-resistant PVC material.

Product Highlights

This valve offers large ports for greater flow and has wetted surfaces that contain less than 0.25 percent lead content. The service temperature can reach up to 140 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Jomar
• MPN: 210-227
• Nominal Size: 1-1/2 inch

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• End Style: Solvent
• Inlet to Outlet Length: 5.12 inches
• Port Type: Large
• Pressure Rating: 150 psi WOG
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees Fahrenheit
• Trim Material: EPDM/UPVC Stem
• Standards/Approval: ASTM F1970, NSF/ANSI 14, NSF 61 - Annex G/61-8/372
