JOMAR 210-224 PVC Schedule 80 Solvent Connection 150 WOG

Product Description

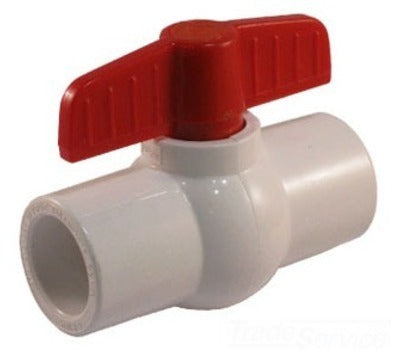

This Jomar Valve PVC Schedule 80 ball valve, model 210-224, is designed for use in solvent connection systems. The valve features a large port for increased flow, and is constructed from corrosion-resistant UPVC material. It is suitable for applications requiring a pressure rating of 150 psi at 73 degrees F continuous.

• Each valve tested in open and closed position
• Minimal pressure drop/turbulence
• Corrosion resistant PVC material

Product Highlights

Large port for greater flow, solvent connections, and a pressure rating of 150 psi at 73 degrees F continuous.

Product Information

Standard Information

• Manufacturer: JOMAR
• UPC: 662527292858

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• End Style: Solvent
• Inlet to Outlet Length: 3.74 inches
• Nominal Size: 3/4 inch
• Port Type: Large
• Pressure Rating: 150 psi WOG
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees F
• Trim Material: EPDM/UPVC Stem
• Standards Met: ASTM F1970, NSF 61/8, NSF 61 and 372, ANSI/NSF 14
