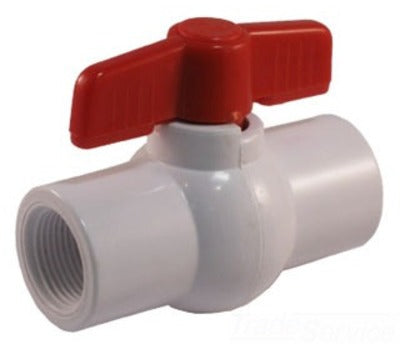

Jomar 210-207 PVC Schedule 80 Threaded Connection 150 WOG

Product Description

The Jomar 210-207 valve is designed for PVC, Schedule 80 applications. It features a threaded connection and operates at 150 WOG. Ideal for various piping needs, this valve is built with a UPVC ball and body, ensuring durability and resistance to corrosion. Each valve is tested to guarantee minimal pressure drop and turbulence.

• Tested in both open and closed positions
• Large ports for improved flow
• Corrosion-resistant PVC material

Product Highlights

This Jomar valve includes NPS end style and meets several industry standards, including NSF 61 and ASTM F1970. It supports a maximum continuous service pressure of 150 psi at 73 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Jomar
• UPC: 662527292797
• Catalog Number: 210-207

Technical Specifications

• Nominal Size: 1-1/2 inches
• Inlet to Outlet Length: 5.12 inches
• Top to Inlet Center: 4.53 inches
• Body Material: UPVC
• Ball Material: UPVC
• Trim Material: EPDM/UPVC Stem
• Softgoods Material: EPDM
• Pressure Rating: 150 psi WOG
• Temperature Rating: 73 degrees Fahrenheit
• Port Type: Large
• End Style: NPS
