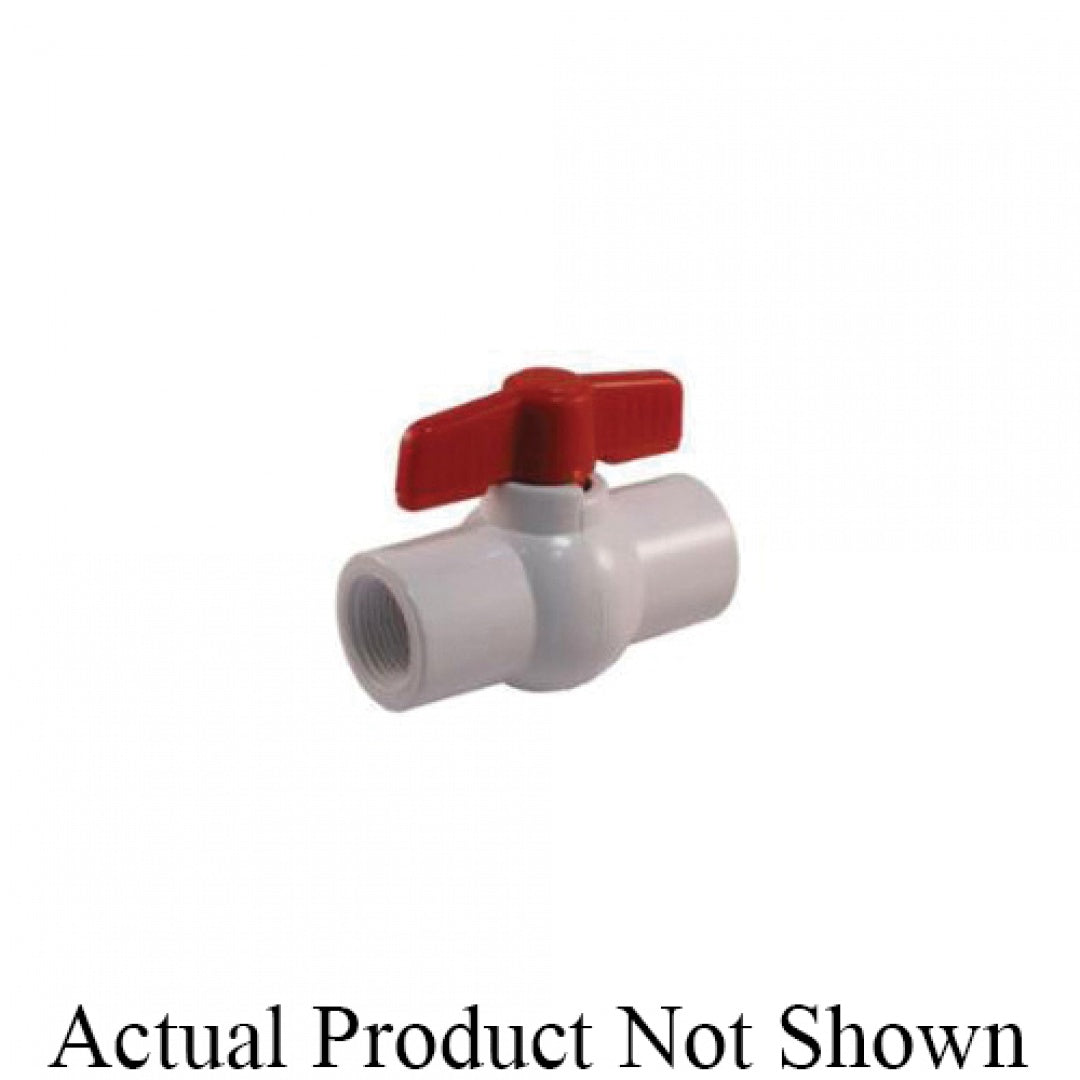

Jomar 210-206 PVC Ball Valve Schedule 80 Threaded Connection 1-1/4 in 150 WOG

Product Description

The Jomar 210-206 PVC Ball Valve Schedule 80 with Threaded Connections is designed for various piping applications. This valve supports a 150 psi WOG and operates at 73 degrees Fahrenheit. Made from corrosion-resistant PVC, it ensures long-lasting performance.

• Each valve is tested in both open and closed positions
• Minimal pressure drop and turbulence
• Large ports allow for greater flow

Product Highlights

This high-quality PVC ball valve features NPS threaded connections and is perfect for durable, corrosion-resistant applications. It has a pressure rating of 150 psi and supports standard temperature settings, making it a reliable component in piping systems.

Product Information

Standard Information

• Brand: Jomar
• MPN: 210-206
• UPC: 662527292773
• Nominal Size: 1-1/4 in
• Selling Size: 1-1/4 in
• Handle Type: T-Handle

Technical Specifications

• Ball Material: UPVC
• Body Material: UPVC
• End Style: NPS
• Inlet to Outlet Length: 4.49 in
• Port Type: Large
• Pressure Rating: 150 psi WOG
• Softgoods Material: EPDM
• Temperature Rating: 73 deg F
• Top to Inlet Center: 3.9 in
• Trim Material: EPDM/UPVC Stem
• Standards/Approval: ASTM F1970, NSF 61 - Annex G/61-8/372, NSF/ANSI 14
