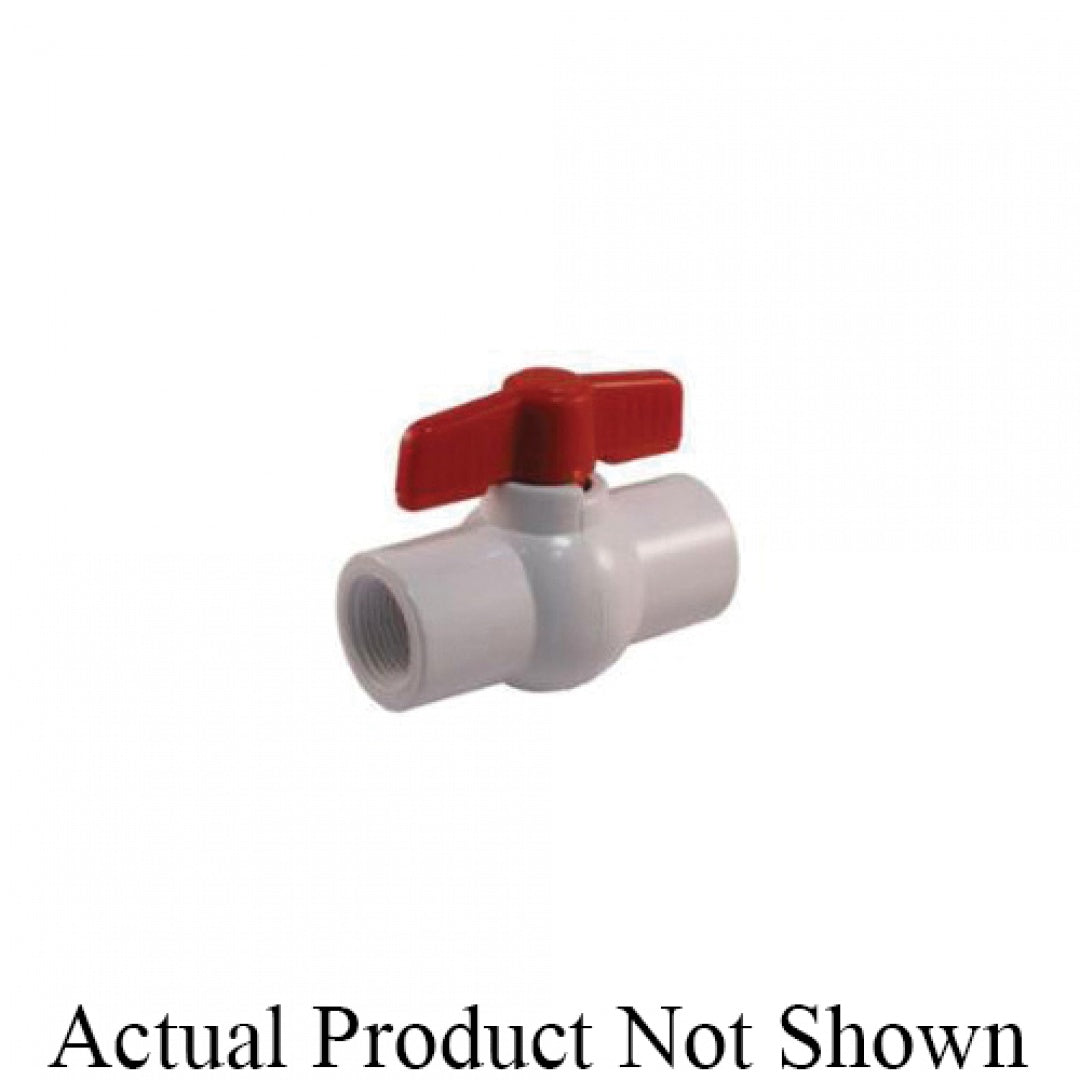

Jomar 210-204 PVC Schedule 80 Threaded Connection 150 WOG

Product Description

The Jomar 210-204 PVC Ball Valve is a durable and reliable choice for piping and fittings. This Schedule 80 valve features a threaded connection and is rated for 150 WOG. It is constructed of corrosion-resistant PVC material and includes a large port for greater flow.

• Each valve tested in open and closed position
• Corrosion-resistant PVC material
• Large ports for greater flow

Product Highlights

The Jomar 210-204 valve minimizes pressure drop and turbulence. It is designed to handle a maximum service temperature of 140 degrees Fahrenheit and a pressure rating of 150 psi at 73 degrees Fahrenheit. The valve’s wetted surfaces contain less than 0.25% lead content, making it safe and reliable for various applications.

Product Information

Standard Information

• Manufacturer: Jomar
• Model Number: 210-204
• Category: Piping & Fittings

Technical Specifications

• Nominal Size: 3/4 inches
• Ball Material: UPVC
• Body Material: UPVC
• End Style: NPS
• Inlet to Outlet Length: 3.74 inches
• Port Type: Large
• Pressure Rating: 150 psi WOG
• Softgoods Material: EPDM
• Temperature Rating: 73 degrees Fahrenheit
• Top to Inlet Center: 3.11 inches
• Trim Material: EPDM/UPVC Stem
