Jomar 200-401SSG 1/4 600WOG FP BV

Product Description

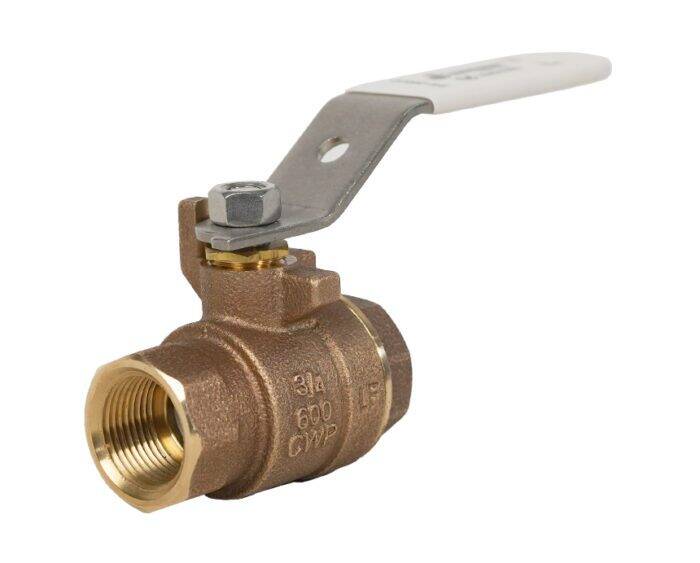

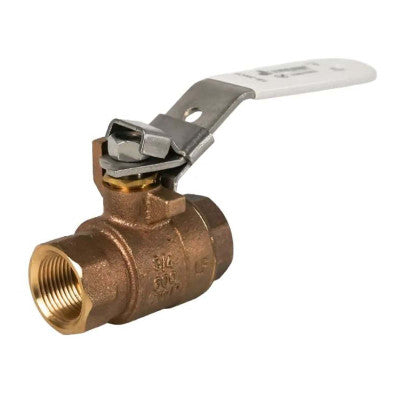

The JOMAR 200-401SSG is a 1/4 600WOG FP BV. It features a lead-free bronze ball valve, a 2-piece design, and a full port. It also has a threaded connection and stainless steel trim. This valve is 600 CWP and 150 WSP.

• Dezincification Resistant Lead Free Bronze
• Blow-Out Proof Stem
• Heavy Commercial Pattern

Product Highlights

This valve is 100% leak-tested and IAPMO certified: NSF 61 & NSF 372 & NSF 14. It has a 29 in-HG vacuum rating and wetted surfaces contain less than .25% lead content.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 200-401SSG

Technical Specifications

• MPN: 200-401SSG
• Make: JOMAR
• Brand: JOMAR
• ManufacturerName: JOMAR
• ManufacturerSKU: 200-401SSG
• SupplierSKU: 1329200401SSG
• Item Number: 200-401SSG
• Actuator Type: Lever Handle
• Ball Material: Stainless Steel 316
• Body Material: Lead Free Bronze
• End Style: FNPT
• Nominal Size: 1/4 In
• Port Type: Full
• Pressure Class: 600 Lb
• Series: T-200CSSG
• Softgoods Material: PTFE
• Type: 2-Piece
