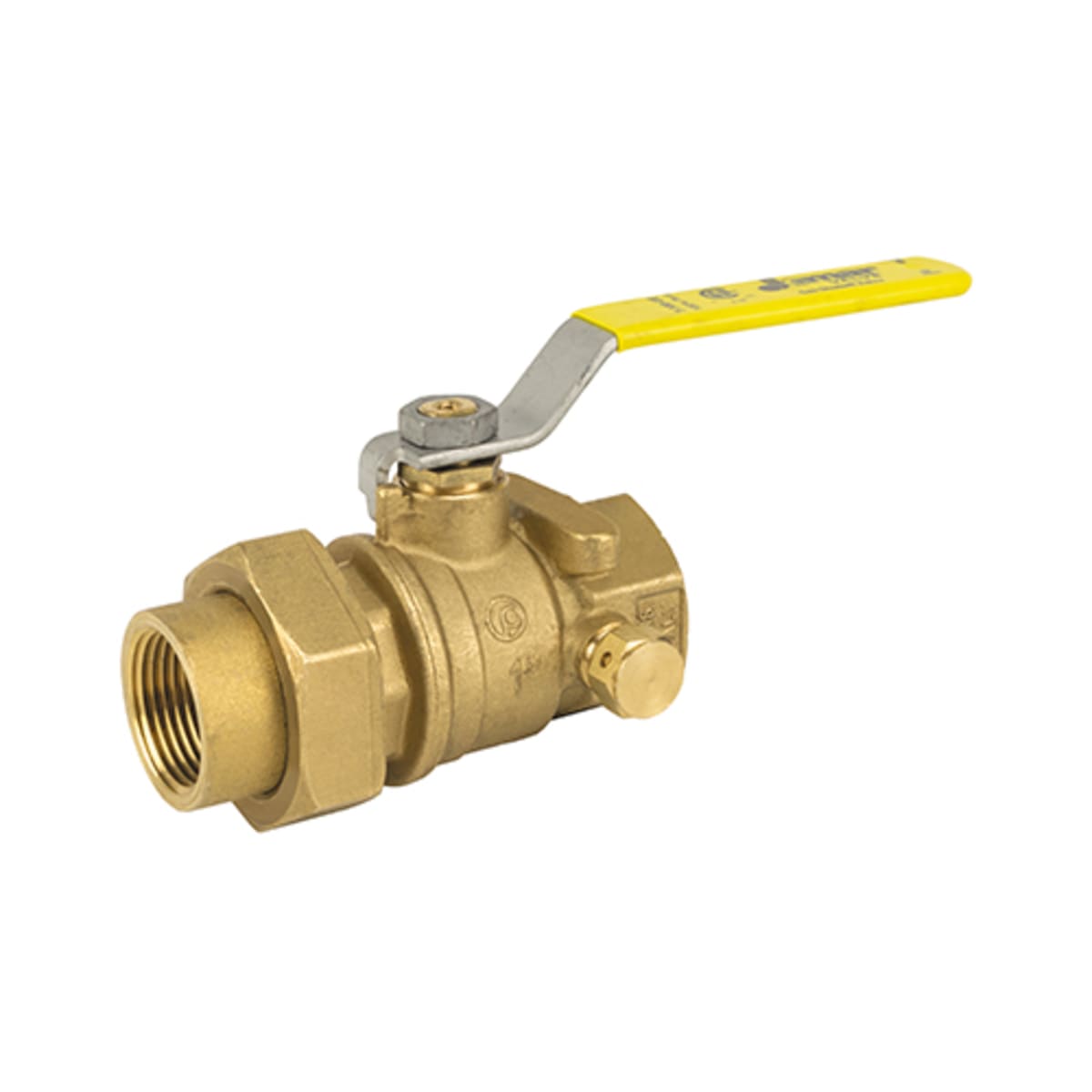

Jomar 160-105 T100UE BRZ FP SUE THRD Ball Valve 1 in

Product Description

The JOMAR 160-105 is a 2-piece full-port ball valve with a 1-inch nominal size and FNPT Union X FNPT connection. It features a brass body, tee handle operator, and aluminum handle. The valve has a pressure rating of 500 PSI (WOG) and 150 PSI (SWP).

• 2-Piece Full-Port Ball Valve
• FNPT Union X FNPT Connection
• Tee Handle Operator

Product Highlights

This ball valve is suitable for various applications requiring reliable flow control and shutoff with its full port design and durable construction.

Product Information

Standard Information

• Brand: JOMAR
• Manufacturer Part Number: 160-105
• Country of Origin: Italy

Technical Specifications

• Series/Model: Model T-100-UE
• Nominal Size: 1 IN
• Connection Type: FNPT Union X FNPT
• Pressure Rating: 500 PSI (WOG), 150 PSI (SWP)
• Body Material: Brass
• Operator Type: Tee Handle
• Handle Material: Aluminum
• Stem Material: Brass
• Trim Material: Brass Stem and Hostaflon® TFM 1600 Seat
• Packing Material: TFM 1600 Hostaflon®
• Gland: Brass
• Seat Material: TFM 1600 Hostaflon®
• Seal Material: Teflon
• Material Specification (Body and Ball): CW617N
• Material Specification (Stem and Gland): CW614N
• Finish/Color: Chrome Plated, Red Handle
• Industry Standards: C/US CSA Certified, MSS-SP-110
• Width: 4.19 IN
• Lead Free: No
• Other Physical Dimension: 2.36 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length
• Flow Co-Efficient (Cv): 52.2
• Ball Material: Chrome Plated Brass
• Domestic/Import: Import
• End Style: FNPT x Union FNPT
• Port Type: Full
• Softgoods Material: Hostaflon® TFM/FKM
• Top to Inlet Center: 2.36 in
• Type: 2-Piece
• Manufacturer: JOMAR
• WOG: 600
• Material: Brass
• Vacuum Rating: 29 in-HG
• Model #: 160-105
• Description: 1 in. Full Port, 2 Piece, Single Union End, Threaded Connection, 600 WOG, with Side Tap
• Item Number: 160-105
• Brand Name: Jomar
