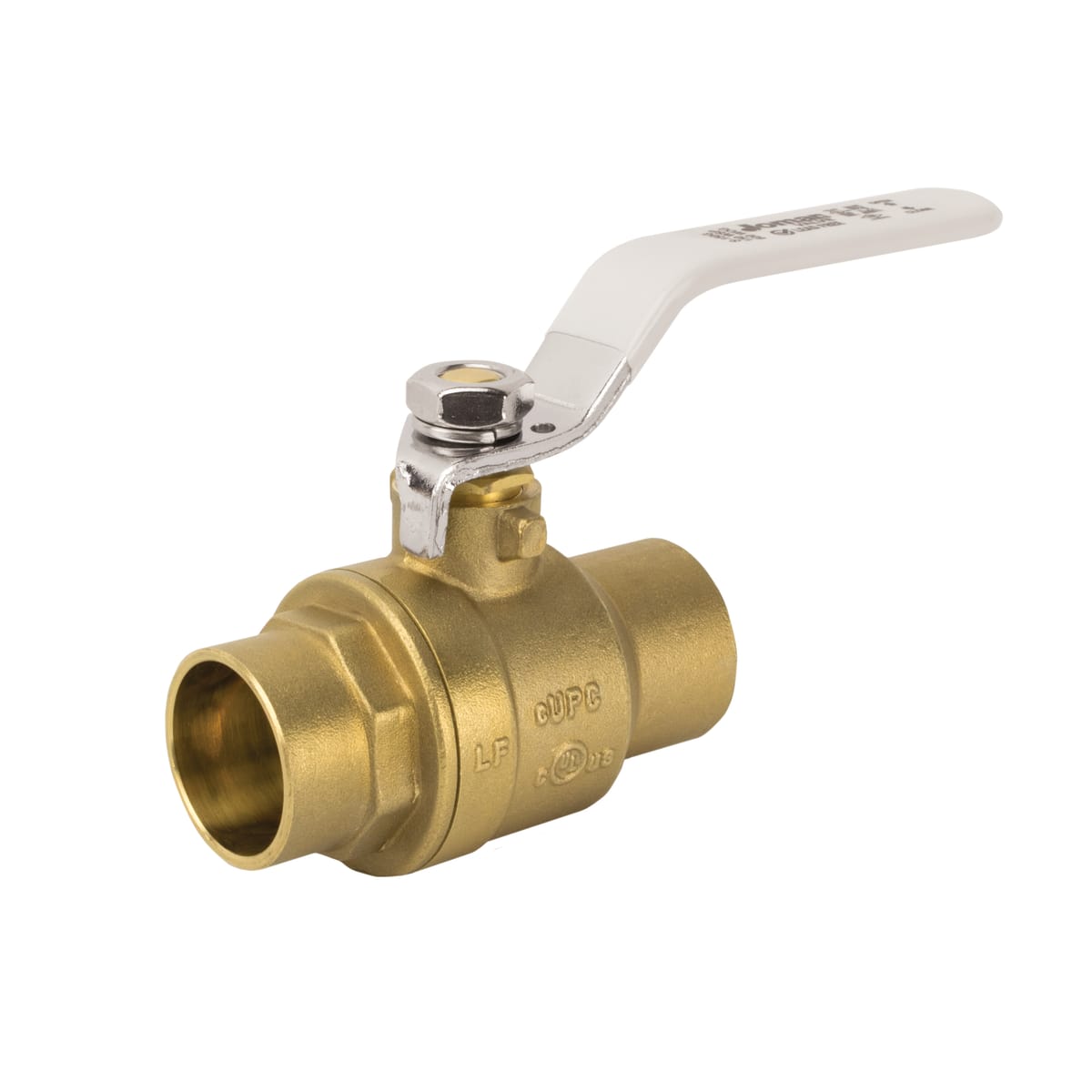

JOMAR 150-119G Full Port, 2 Piece, Solder Connection, 600 WOG

Product Description

The JOMAR 150-119G is a ball valve designed for solder connections. It features a full port design and operates at a pressure rating of 600 WOG. This valve is made from brass and is equipped with a stainless steel ball for durability and reliability.

• Dezincification resistant brass alloy
• Blow-out proof stem design
• PTFE packing and FKM O-ring

Product Highlights

This valve is suitable for a variety of applications, including plumbing and heating systems. Its high pressure rating makes it ideal for steam and water service.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Brass
• End Style: Solder
• Inlet to Outlet Length: 6.24 inches
• Nominal Size: 2-1/2 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 4.78 inches
• Trim Material: Brass Stem and PTFE Seat
