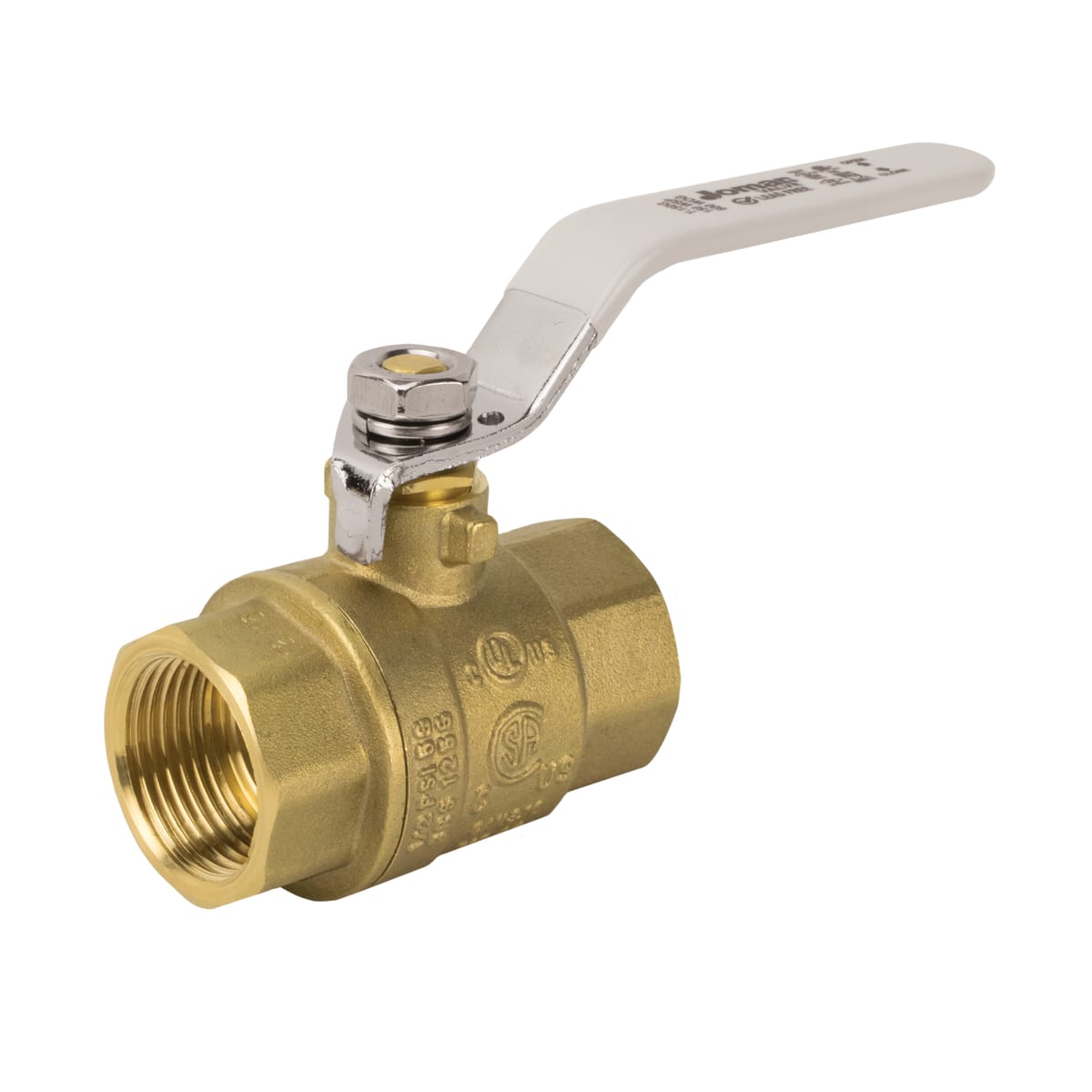

JOMAR 150-111G Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

The JOMAR 150-111G is a ball valve designed for standard piping applications. This model features a two-piece construction with a full port design, allowing for maximum flow and minimal pressure loss. The valve is rated for six hundred psi WOG and is made from durable materials suitable for various environments.

• Dezincification resistant brass alloy
• Blow-out proof stem
• PTFE packing and FKM O-ring

Product Highlights

The JOMAR 150-111G ball valve is useful in plumbing and industrial settings where reliable flow control is essential. Its easy installation and maintenance make it a preferred choice among professionals.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 150-111G

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 7.23 inches
• Nominal Size: 4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 6.57 inches
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
