Jomar 150-109G Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

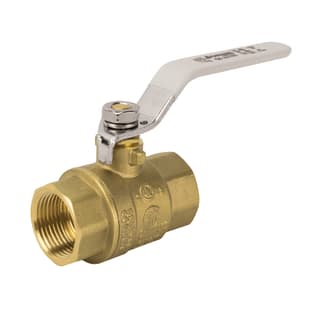

Jomar 150-109G is a ball valve featuring a full port design. This is a 2-piece, threaded connection valve that operates at a pressure rating of six hundred WOG. It is made from high-quality 316 stainless steel for the ball and brass for the body and stem. The valve measures five point thirty-three inches from inlet to outlet and has a nominal size of two and a half inches.

• Constructed with dezincification resistant brass alloy
• Blow-out proof stem for secure operation
• PTFE packing with FKM O-ring available

Product Highlights

This valve supports reliable service in various piping applications. It is designed for use in water or low-pressure steam systems.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: 2-Piece

Technical Specifications

• Ball Material: 316 Stainless Steel
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 5.33 inches
• Nominal Size: 2-1/2 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 4.72 inches
• Trim Material: Brass Stem and PTFE Seat
