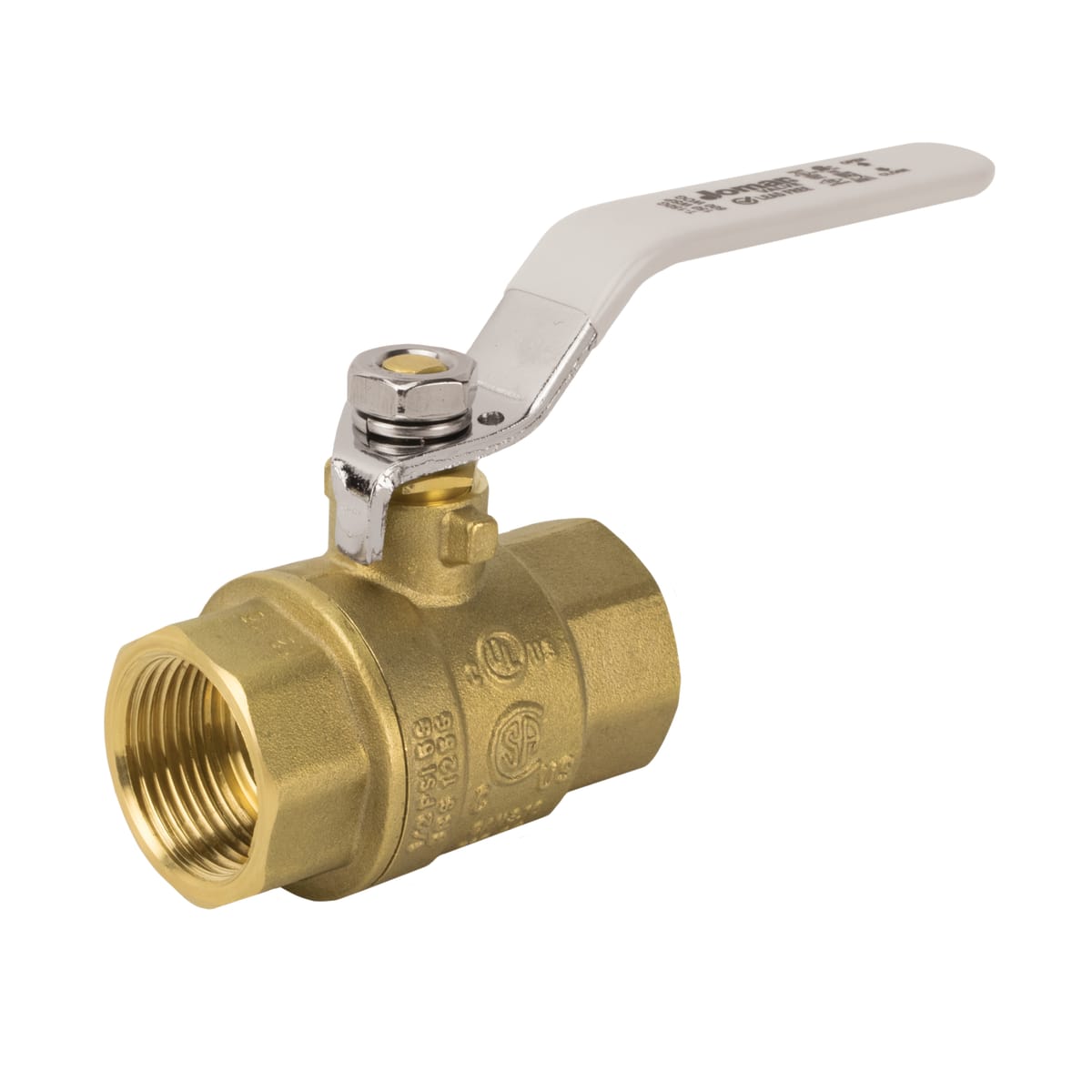

Jomar 150-108G Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

This is the Jomar valve 150-108G, a two-piece ball valve with threaded connections. It is rated for 600 psi working pressure and features a full port design. Made of brass and 316 stainless steel, this valve ensures durability and reliability in piping applications.

• Full port design allows for maximum flow
• Constructed from dezincification-resistant brass
• Complies with NSF standards for lead content

Product Highlights

The Jomar 150-108G ball valve is designed for durability and safety, making it suitable for various plumbing systems.

Product Information

Standard Information

• Manufacturer: Jomar
• Body Material: Brass

Technical Specifications

• MPN: 150-108G
• Ball Material: 316 Stainless Steel
• Nominal Size: 2 in
• End Style: FNPT
• Inlet to Outlet Length: 4.17 in
• Top to Inlet Center: 3.34 in
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FKM
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
