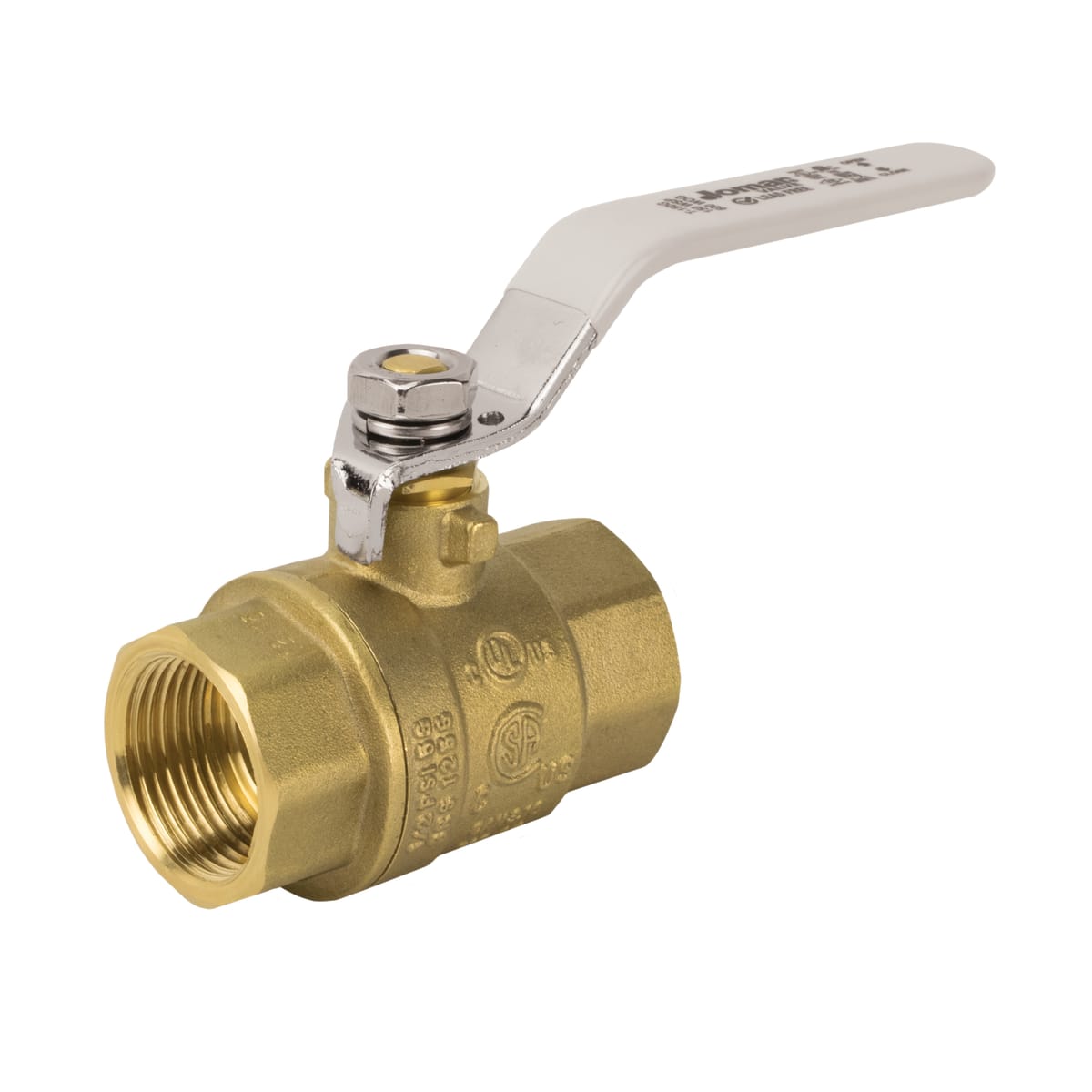

Jomar 150-104G Full Port, 2 Piece, Threaded Connection, 600 WOG

Product Description

The Jomar 150-104G is a two-piece ball valve designed for reliable performance in plumbing applications. This valve is constructed from brass and can handle pressures up to 600 psi. It features a full port design allowing for maximum flow and minimal pressure drop.

• Dezincification resistant brass alloy for enhanced durability.
• Single O-Ring stem design to ensure a secure seal.
• Blow-out proof stem to maintain structural integrity under pressure.

Product Highlights

This ball valve is ideal for various applications, including water distribution and heating systems.

Product Information

Standard Information

• Manufacturer: Jomar
• UPC: 662527305640

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• End Style: FNPT
• Inlet to Outlet Length: 2.38 inches
• Nominal Size: 3/4 inches
• Port Type: Full
• Pressure Rating: 600 psi WOG
• Softgoods Material: PTFE/FKM
• Top to Inlet Center: 1.94 inches
• Type: 2-Piece
