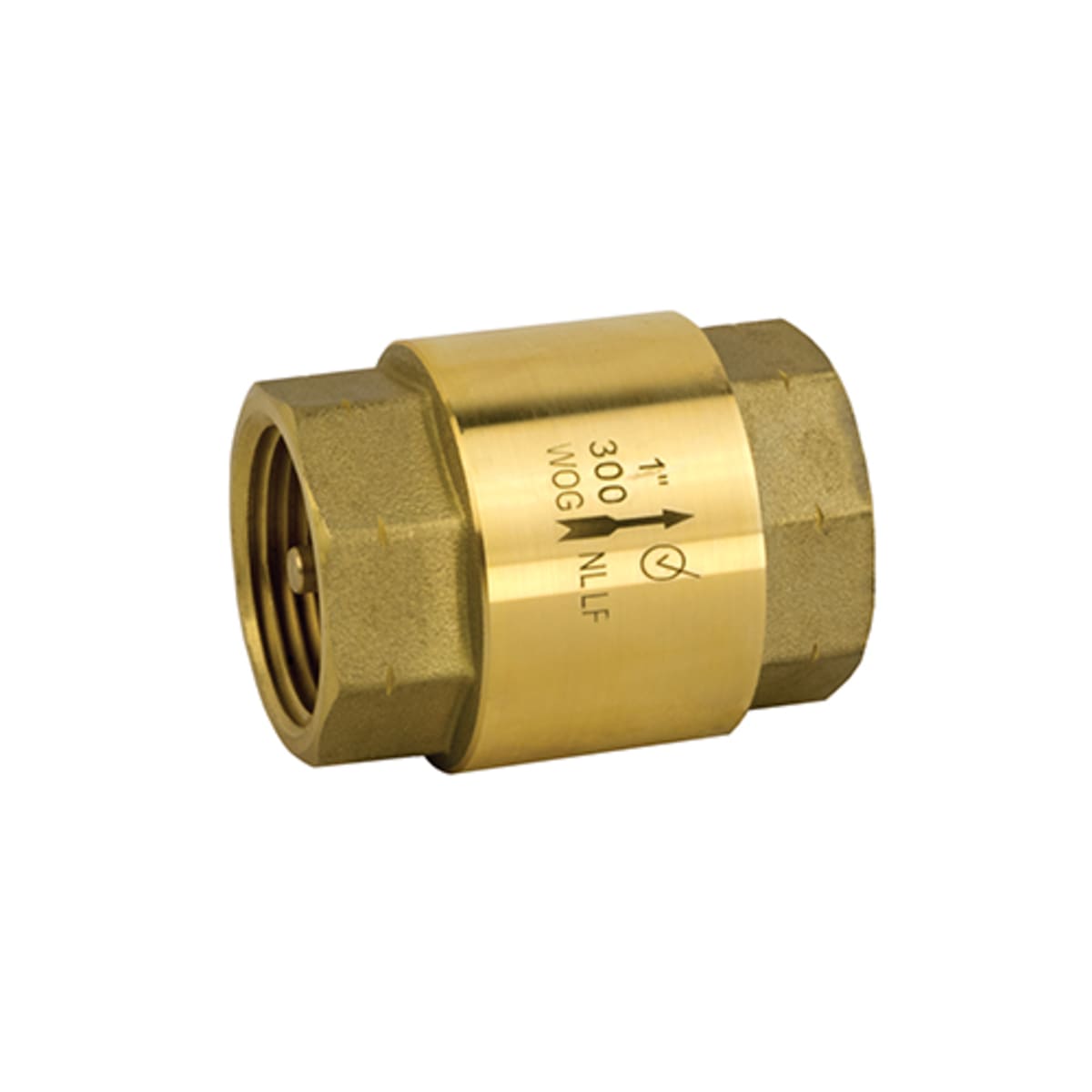

Jomar 105-608G Inline Check Valve, Threaded Connection, 300 WOG, Class 150

Product Description

The Jomar 105-608G is an inline check valve designed for use with threaded connections. This valve operates effectively at a pressure of 300 WOG and is compliant with Class 150 standards. It is suitable for various applications within piping systems where backflow prevention is necessary.

• Spring assisted actuator for reliable operation
• Lead-free brass construction ensures safety
• Bubble-tight PTFE seal for leak prevention

Product Highlights

This Jomar valve can be installed in any position. The valve's design minimizes lead content making it safe for use in water systems. It is compatible with NPT connections and has a nominal size of two inches.

Product Information

Standard Information

• Manufacturer: JOMAR
• MPN: 105-608G

Technical Specifications

• Actuator Type: Spring Assisted
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 3.15 inches
• Low Lead Compliance: Yes
• Nominal Size: 2 inches
• Pressure Class: 150 lb
• Series: T-521G
• Softgoods Material: PTFE Seal
• Temperature Rating: 250 degrees F
• Trim Material: PTFE
