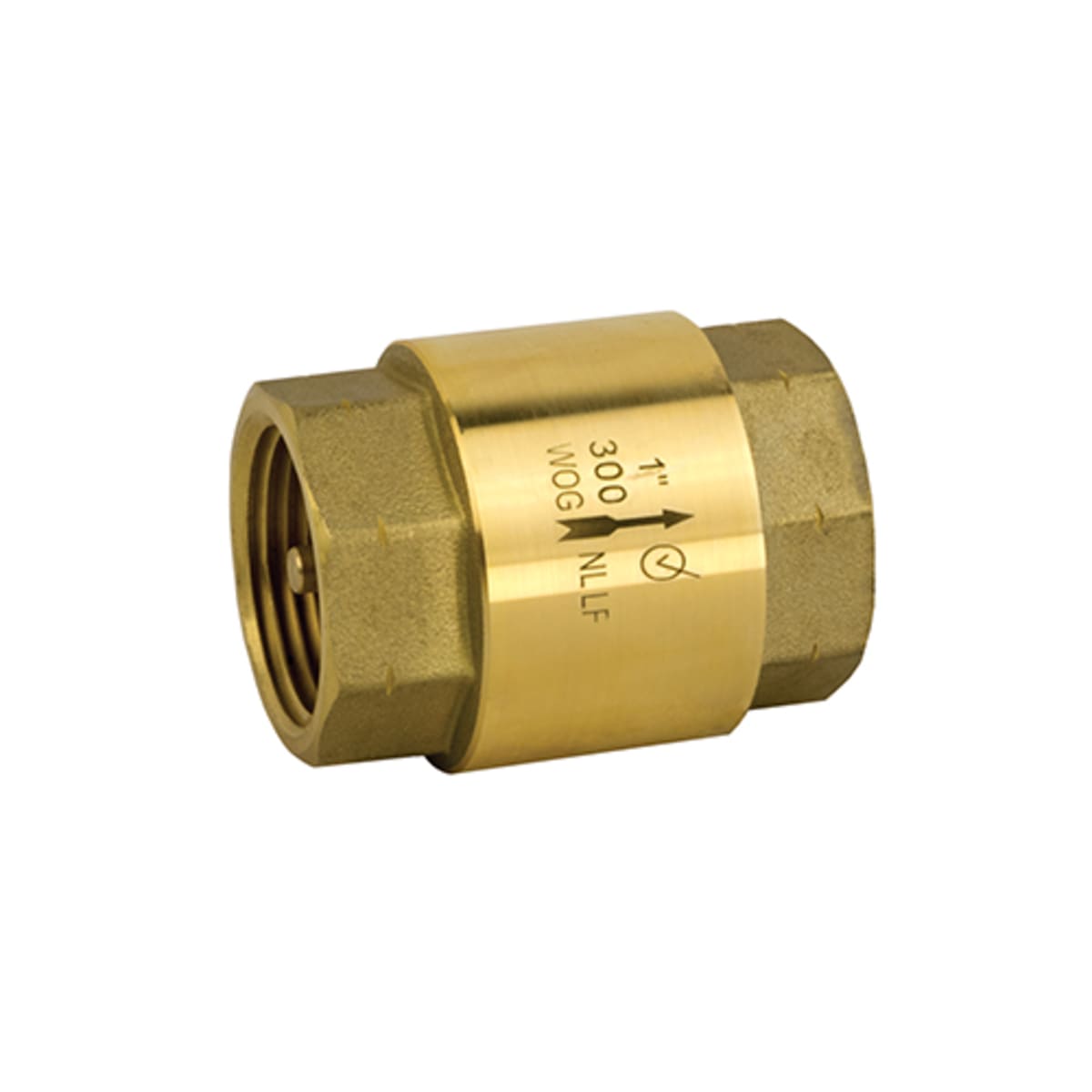

JOMAR 105-607G Inline Check Valve, Threaded Connection, 300 WOG, Class 150

Product Description

The JOMAR 105-607G is an Inline Check Valve designed for a threaded connection, rated at 300 WOG and Class 150. This valve is suitable for various piping applications and can be installed in any position.

• Threaded connection for easy installation.
• Constructed from forged lead-free brass.
• Features a bubble-tight PTFE seal for reliable performance.

Product Highlights

This inline check valve utilizes a spring-assisted actuator and offers a low lead compliance, making it a safe choice for potable water applications. The valve is also rated for a temperature of up to two hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: JOMAR
• MPN: 105-607G

Technical Specifications

• Actuator Type: Spring Assisted
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 2.34 inches
• Low Lead Compliance: Yes
• Nominal Size: 1-1/2 inches
• Pressure Class: 150 lb
• Series: T-521G
• Softgoods Material: PTFE Seal
• Temperature Rating: 250 degrees Fahrenheit
• Trim Material: PTFE
