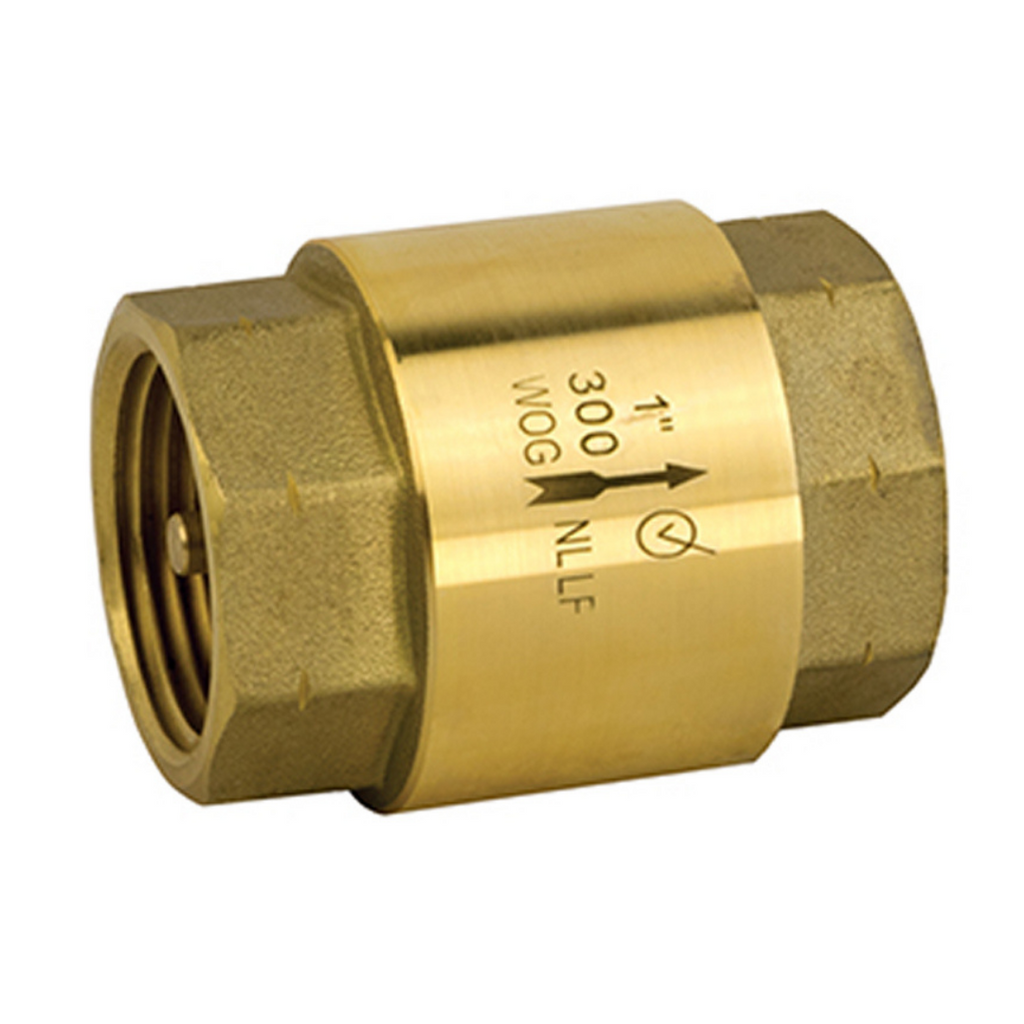

Jomar 105-605G Inline Check Valve, Threaded Connection, 300 WOG, Class 150

Product Description

The Jomar 105-605G is an inline check valve designed for threaded connections. It operates efficiently within a pressure class of 150 lb and can handle temperatures up to two hundred fifty degrees Fahrenheit. This valve features a spring-assisted actuator and complies with low lead standards, ensuring safe use in various plumbing applications.

• Can be installed in any orientation.
• Bubble-tight PTFE seal for leak prevention.
• Low lead compliance with less than 0.25% lead content.

Product Highlights

The valve is ideal for preventing backflow in water systems, making it suitable for use in residential and commercial plumbing.

Product Information

Standard Information

• Manufacturer: JOMAR
• Nominal Size: 1 in

Technical Specifications

• Actuator Type: Spring Assisted
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 1.77 inches
• Low Lead Compliance: Yes
• Pressure Class: 150 lb
• Series: T-521G
• Softgoods Material: PTFE Seal
• Temperature Rating: 250 degrees Fahrenheit
• Trim Material: PTFE
