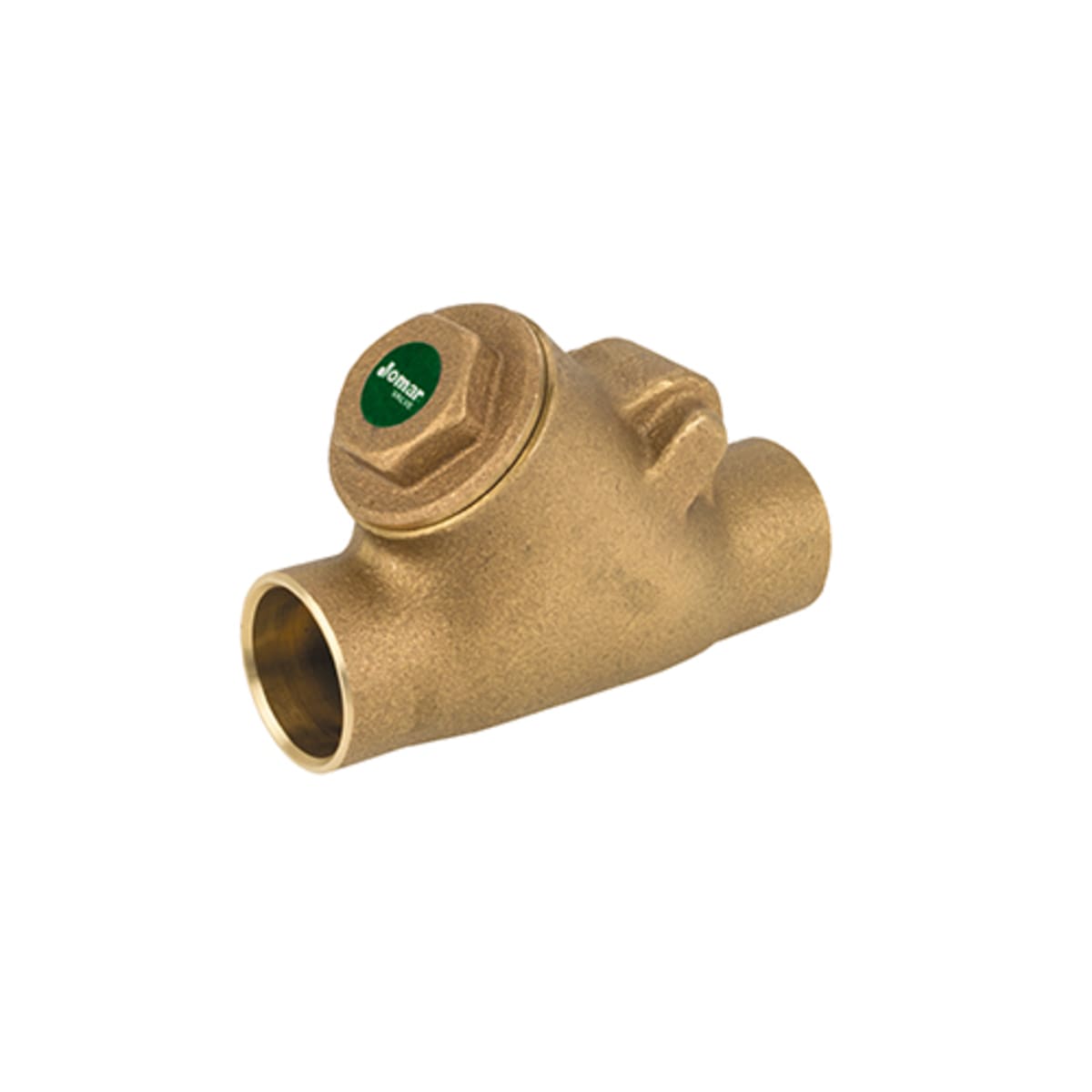

Jomar 105-405G Y-Pattern Swing Check Valve Solder Connection Class 150 300 WOG

Product Description

The Jomar 105-405G is a Y-Pattern Swing Check Valve designed for solder connections. This valve operates at a class 150 pressure and is rated for 300 WOG. It is suitable for various piping applications where non-return flow is essential.

• Constructed with a bronze body and brass/PTFE trim for durability.
• Complies with low lead regulations.
• Flexible installation options in either vertical or horizontal orientations.

Product Highlights

This valve features a spring actuator for effective closure and is designed to prevent backflow in plumbing systems.

Product Information

Standard Information

• Brand: Jomar
• MPN: 105-405G

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Trim Material: Brass/PTFE
• End Style: Solder Joint
• Nominal Size: 1 in
• Pressure Class: 150 lb
• Series: S-511G
• Top to Inlet Center: 2.28 in
• Inlet to Outlet Length: 4.09 in
• Low Lead Compliance: Yes
