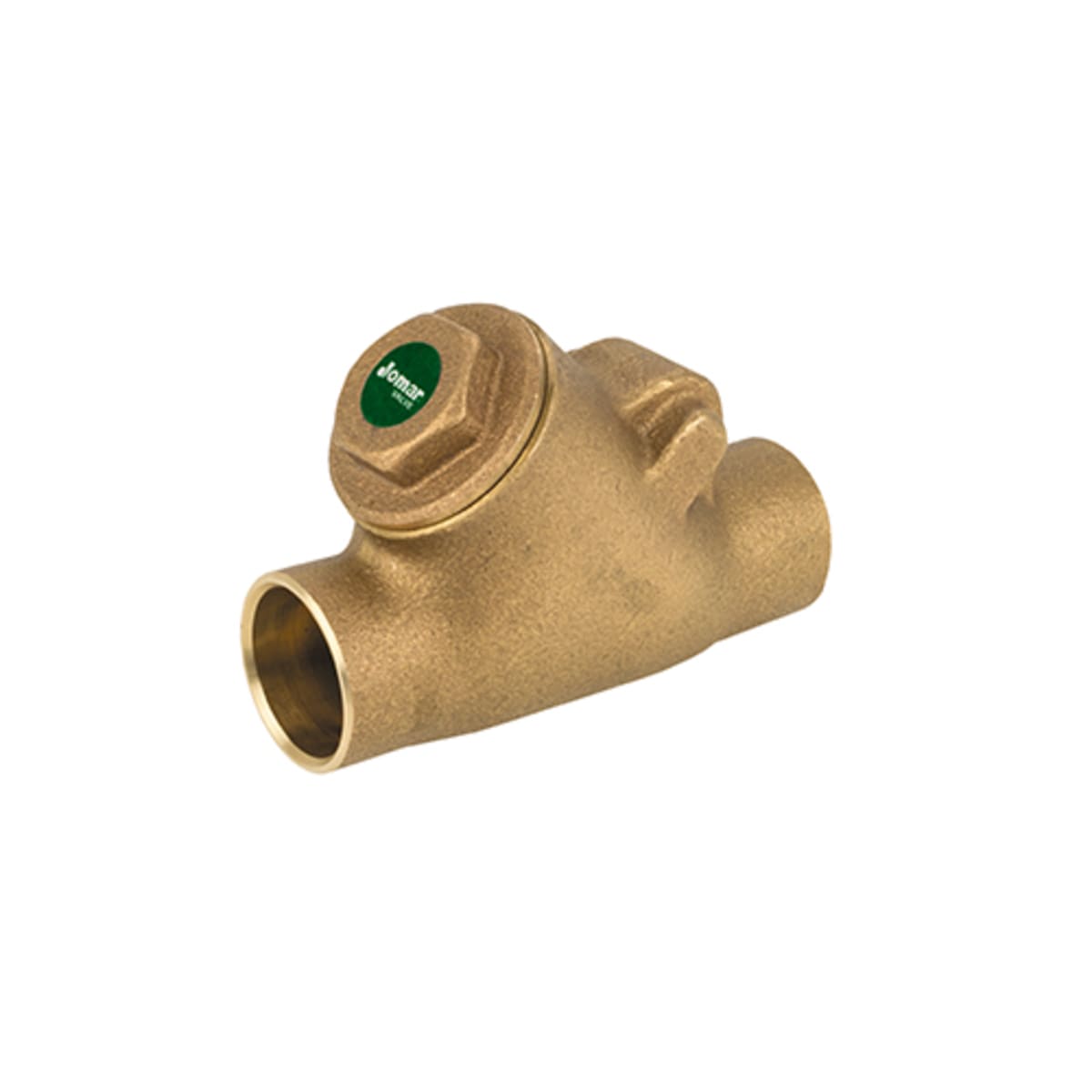

Jomar 105-404G Y-Pattern Swing Check Valve, Solder Connection, Class 150, 300 WOG

Product Description

The Jomar 105-404G is a Y-Pattern Swing Check Valve designed for solder connections. This valve operates effectively within a class 150 pressure range and accommodates 300 WOG applications. It features a bronze body with brass and PTFE trim, ensuring durability and low lead compliance.

• Can be installed vertically or horizontally
• Wetted surface contains less than 0.25% lead content
• Actuated by a spring mechanism

Product Highlights

This valve is suitable for various piping systems, ensuring optimal flow control and preventing backflow.

Product Information

Standard Information

• Manufacturer: JOMAR
• Type: Y-Pattern Swing Check Valve

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• End Style: Solder Joint
• Inlet to Outlet Length: 3.39 inches
• Low Lead Compliance: Yes
• Nominal Size: 3/4 inches
• Pressure Class: 150 lb
• Series: S-511G
• Top to Inlet Center: 1.97 inches
• Trim Material: Brass/PTFE
