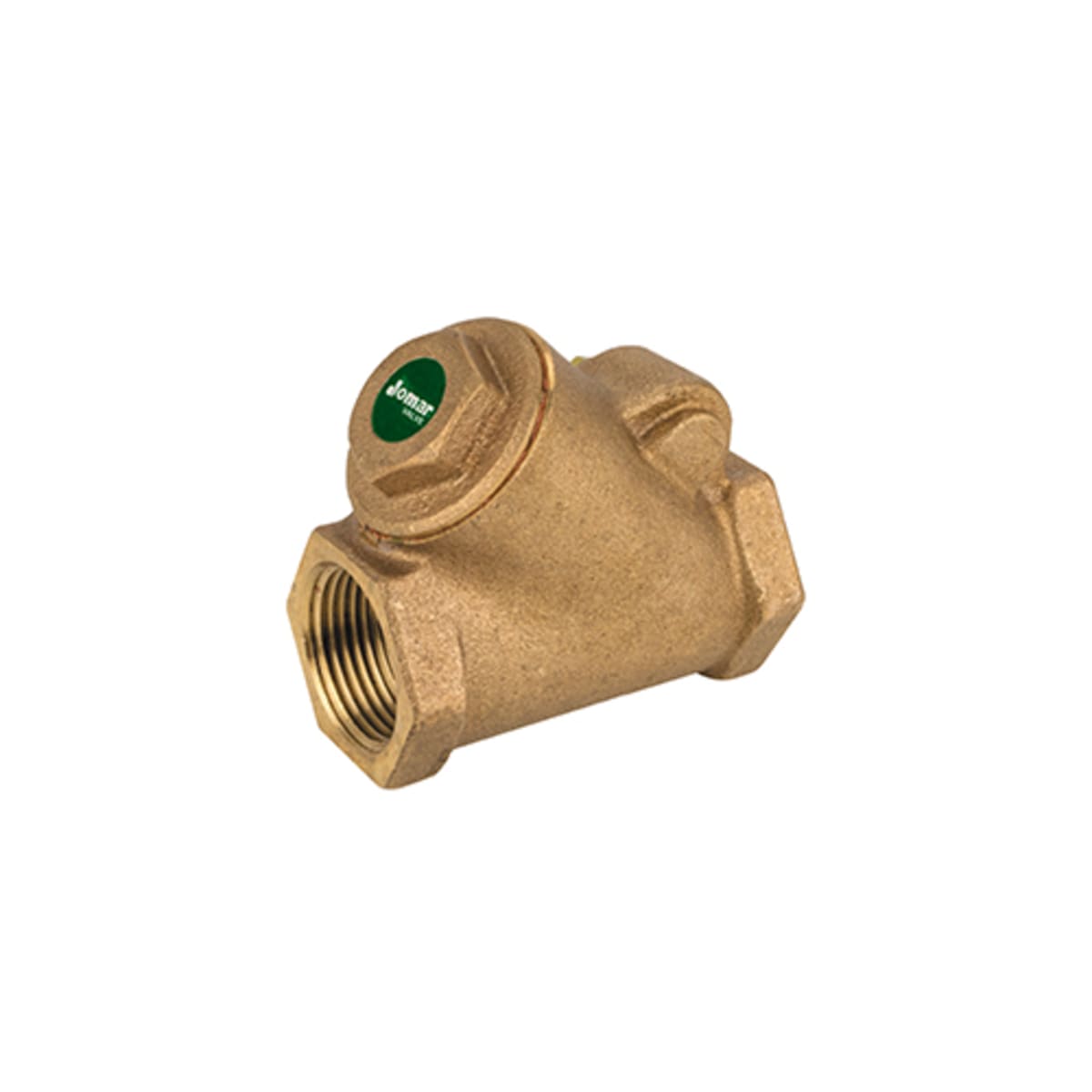

Jomar 105-306G Y-Pattern Swing Check Valve, Threaded Connection, Class 150, 300 WOG

Product Description

The Jomar 105-306G is a Y-Pattern Swing Check Valve with a threaded connection suitable for Class 150 and 300 WOG applications. This valve is designed to prevent backflow in plumbing systems and can be installed in either vertical or horizontal positions. It features a robust bronze body with brass and PTFE trim for enhanced durability.

• Installed in vertical or horizontal positions
• Wetted surfaces contain less than 0.25 % lead content
• 150 lb pressure class

Product Highlights

This valve is compliant with low lead regulations and features a spring actuator, making it reliable for various applications in piping and fittings.

Product Information

Standard Information

• Manufacturer: JOMAR
• Product SKU: JOM 105-306G

Technical Specifications

• Actuator Type: Spring
• Body Material: Bronze
• Nominal Size: 1-1/4 inches
• End Style: NPT
• Inlet to Outlet Length: 3.78 inches
• Top to Inlet Center: 2.67 inches
• Pressure Class: 150 lb
• Series: T-511G
• Trim Material: Brass/PTFE
• Low Lead Compliance: Yes
